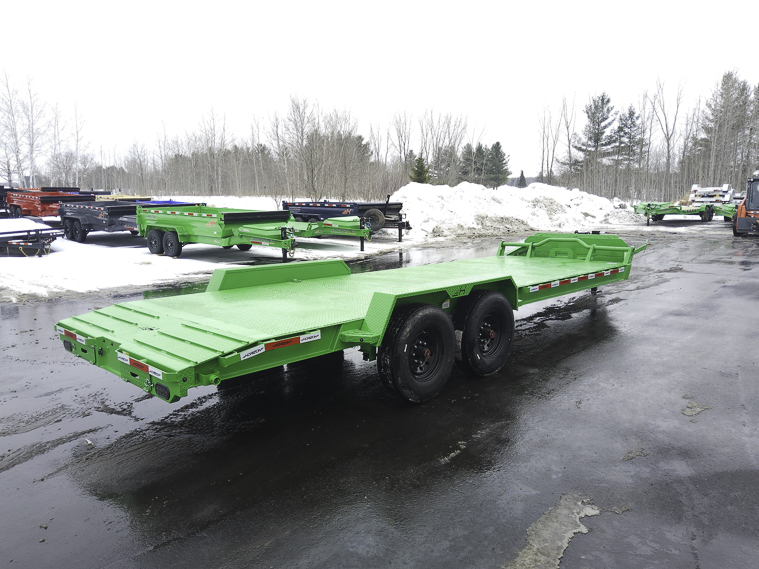

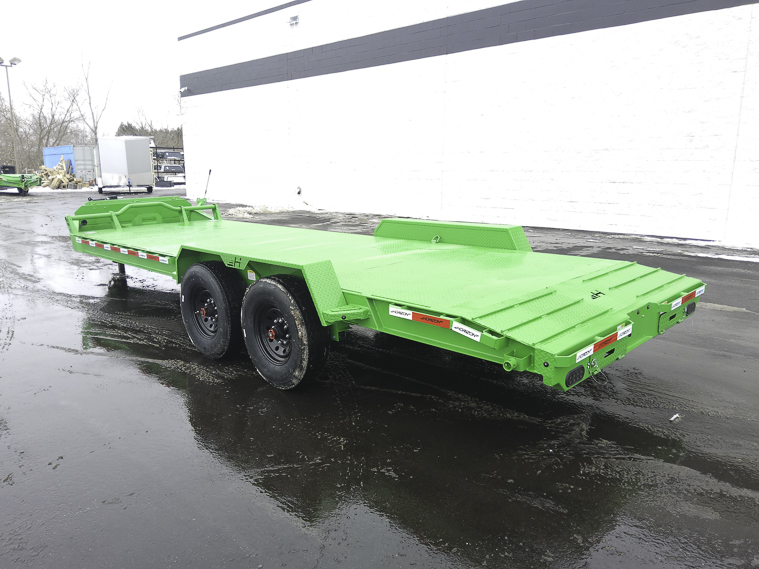

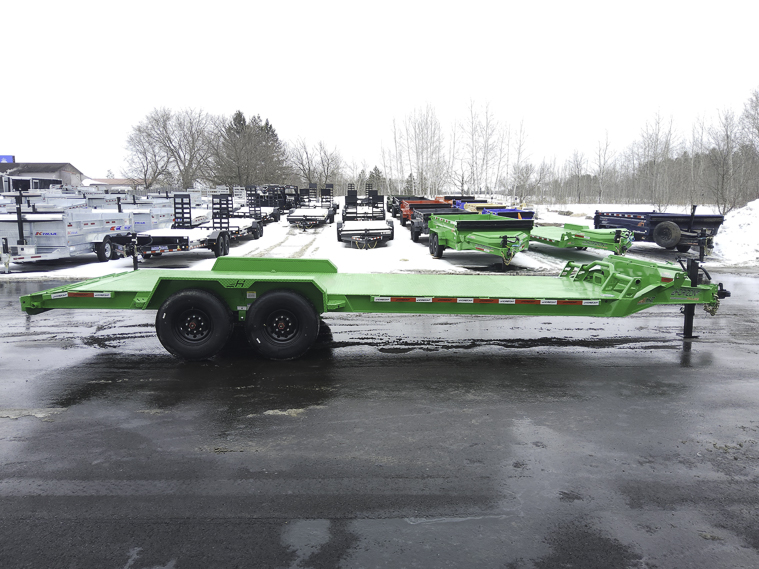

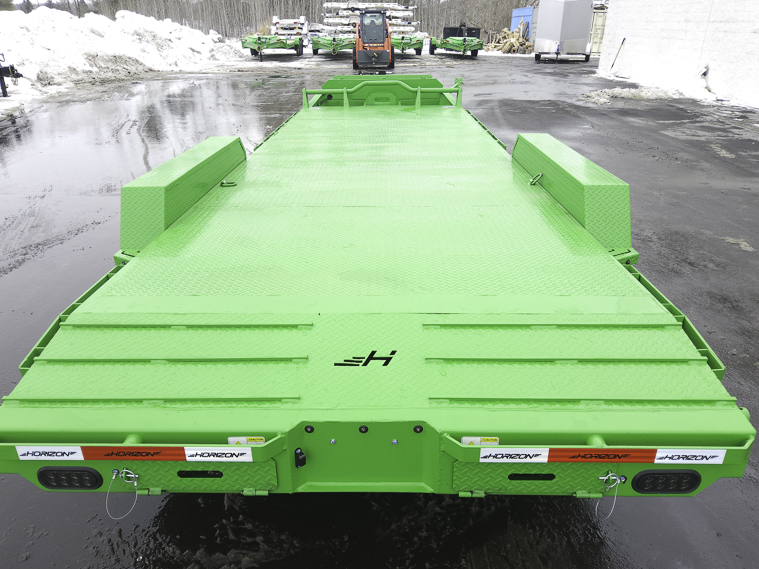

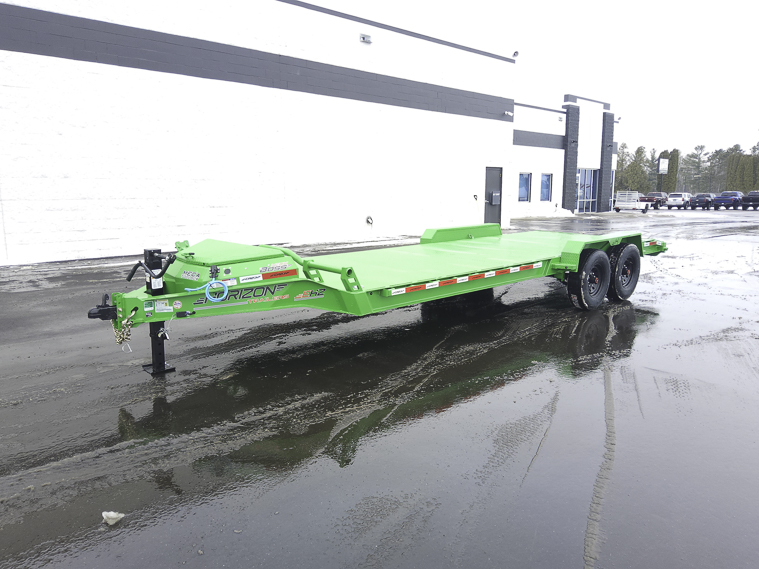

2026  Horizon  83X22 EHZ DRIVE OVER EQUIPMENT TRAILER 1  EHZ - HZ015451

2026 Horizon 83X22 EHZ EQUIPMENT TRAILER

Valder's Upgrades
- 12 gauge Diamond Plate Steel Deck
- (2) 8k Electric Brake Oil Bath Spring Axles
- Derated to 14k GVWR

Specifications:
- 8" I-BEAM [13 LBS/FT]
- MEGA LOCKABLE TOOLBOX
- ROBUST TOOLBOX LATCH
- WELD ON SPARE TIRE MOUNT
- FRONT GUARD RAIL
- OUTER DECK FRAME 3/16" DIAMOND PLATE
- 2' DOVETAIL
- RAMP POCKETS W/ 5' 6" LONG HEAVY DUTY SLIDE IN 4" CHANNEL RAMPS
- 2 D-RINGS IN BETWEEN FENDERS
- 83" WIDE IN BETWEEN FENDERS
- NECKBOSS 8" ENGINEERED I-BEAM
- COUPLER: ADJUSTABLE AUTO LATCH 2,5/16" BP COUPLER (17,000 LBS)
- FRONT JACK: 1 SIDE WIND SPRING LOADED DROP JACK LEG (12,000 LBS]
- TOOLBOX: MEGA LOCKABLE TOOLBOX
- SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH]
- WINCH PLATE BEHIND NECK
- DECK FRAME: 3/16" DIAMOND PLATE
- CROSSMEMBERS: 3" CHANNEL [3.50 LBS/FT] 16" SPACING
- DECK HEIGHT: 25"
- DECK WIDTH: 83"
- WIDTH BETWEEN FENDERS: 83"
- WELD ON D-RINGS: 2 - D-RINGS IN BETWEEN FENDERS
- BOLT ON SWIVEL D-RINGS: 2 - FLUSH MOUNT GALVANIZED SWIVEL D-RINGS FRONT OF TRAILER
- TIE DOWN SLOTS: SLOTS FOR LATCH ON TIE DOWN FITTINGS FRONT END OF DECK
- RUB RAIL: 2" X 3/8" RUB RAIL
- STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS (SPACED AT 24")
- FRONT GUARD: REINFORCED 2" 10GA. ROUND TUBING
- REAR RAMPS: RAMP POCKETS W/ 5' 6" LONG HEAVY DUTY SLIDE IN 4" CHANNEL RAMPS (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE]
- TIRES: ST235/80R16 10 Ply
- RIMS: 16" BLACK MOD WHEELS 8 ON 6.5"
- AXLE TYPE: (2) 8k Electric Brake Oil Bath Spring Axles
- SUSPENSION TYPE: SPRING
- GVWR: 14000 lbs
- Curb Weight: 4120 lbs
- Load Capacity: 9880 lbs

Warranty:
3-Year STRUCTURAL WARRANTY
1-Year COMPONENT WARRANTY
1-Year PAINT WARRANTY

*All Trade-Ins Welcome*
*Financing available OAC*
*Ask about our Extended Service Contracts*
