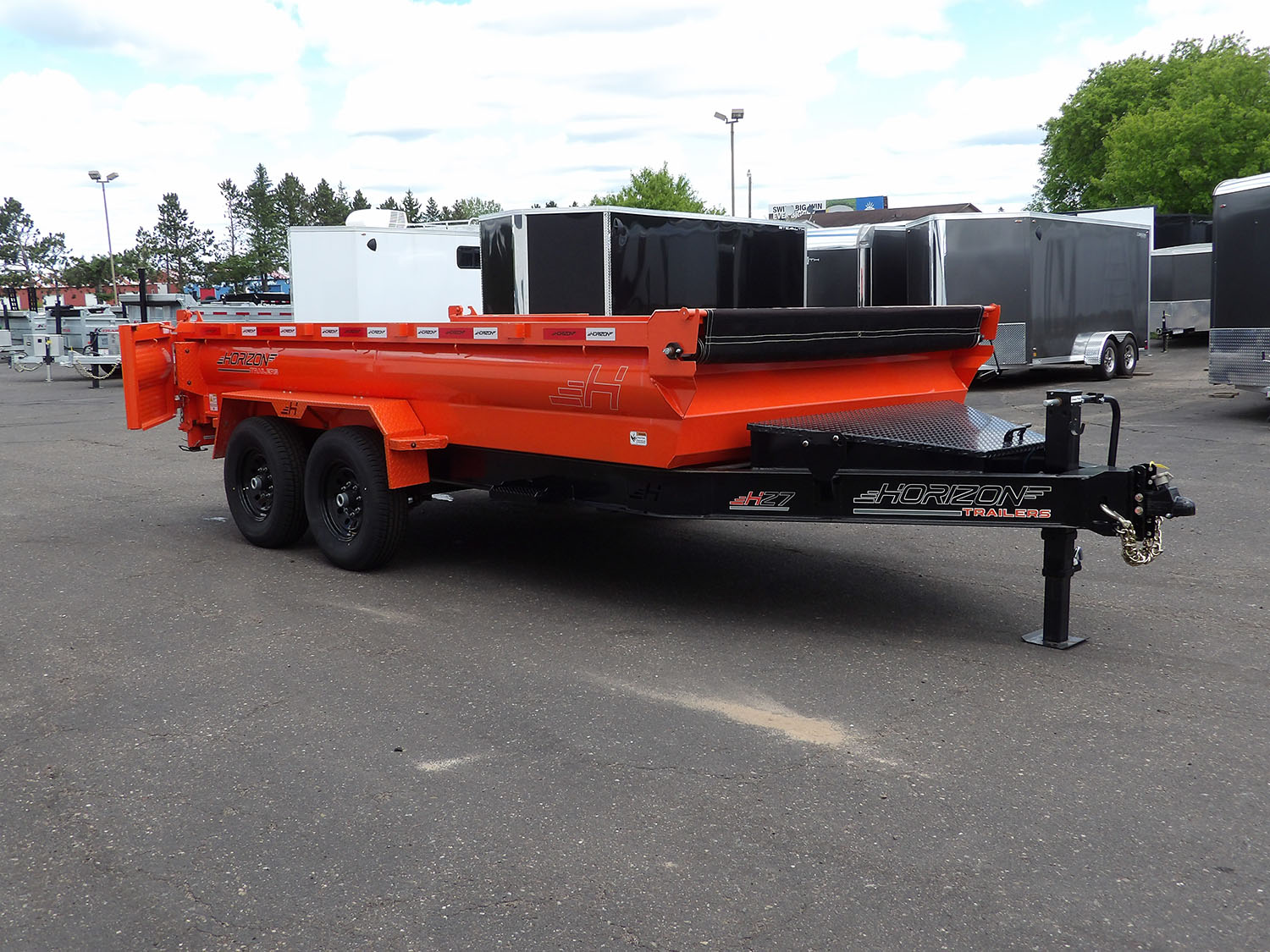

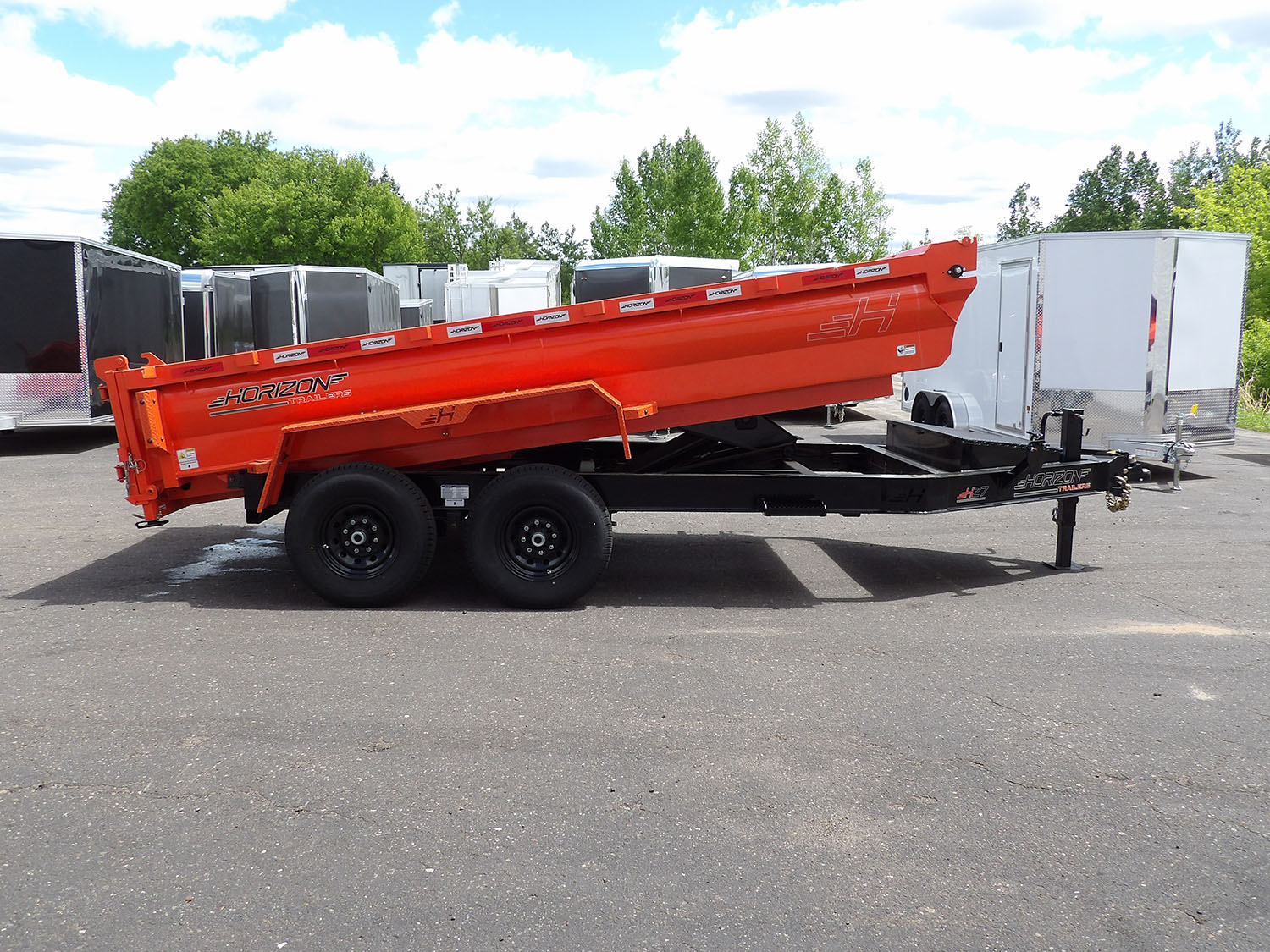

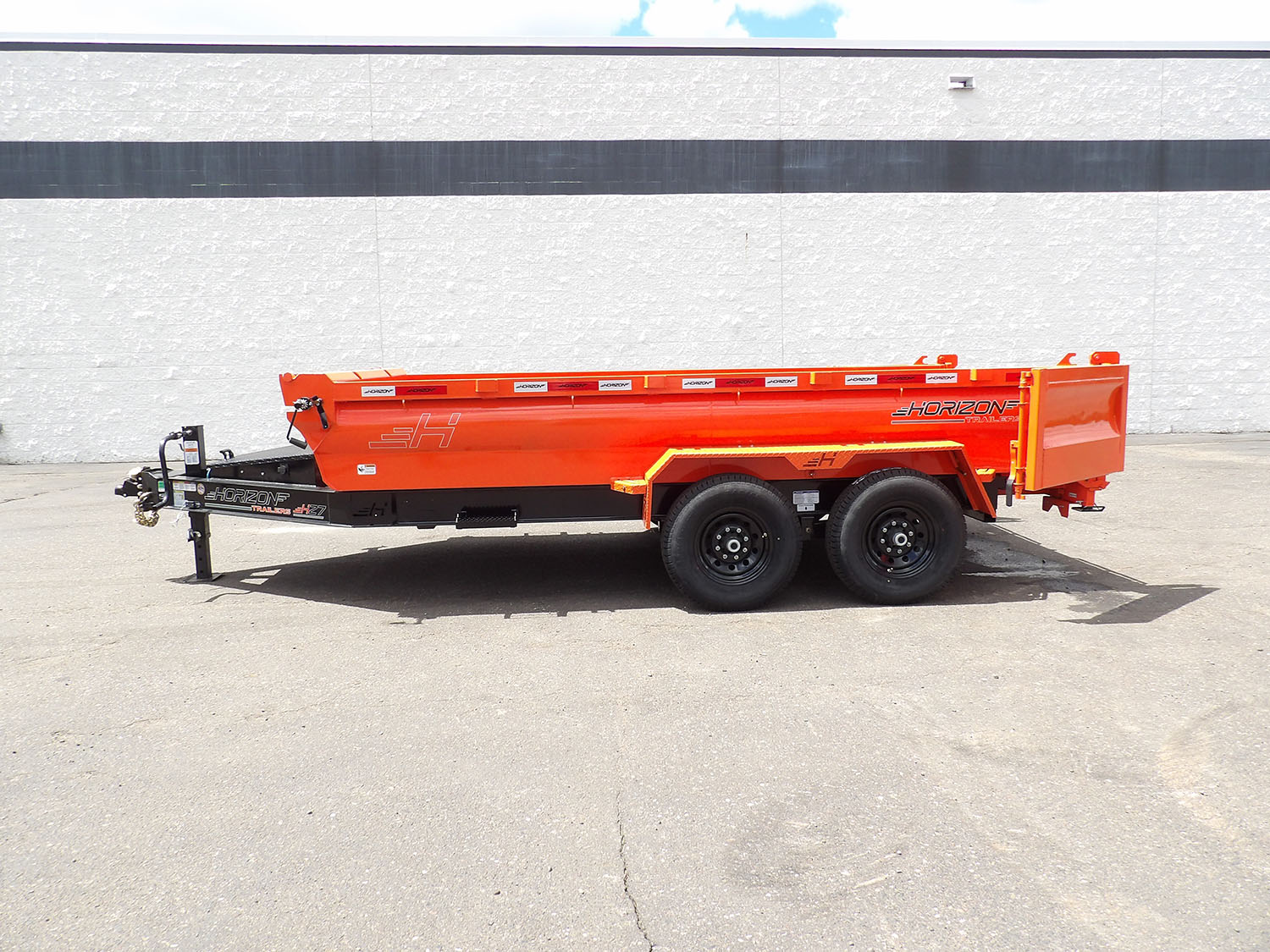

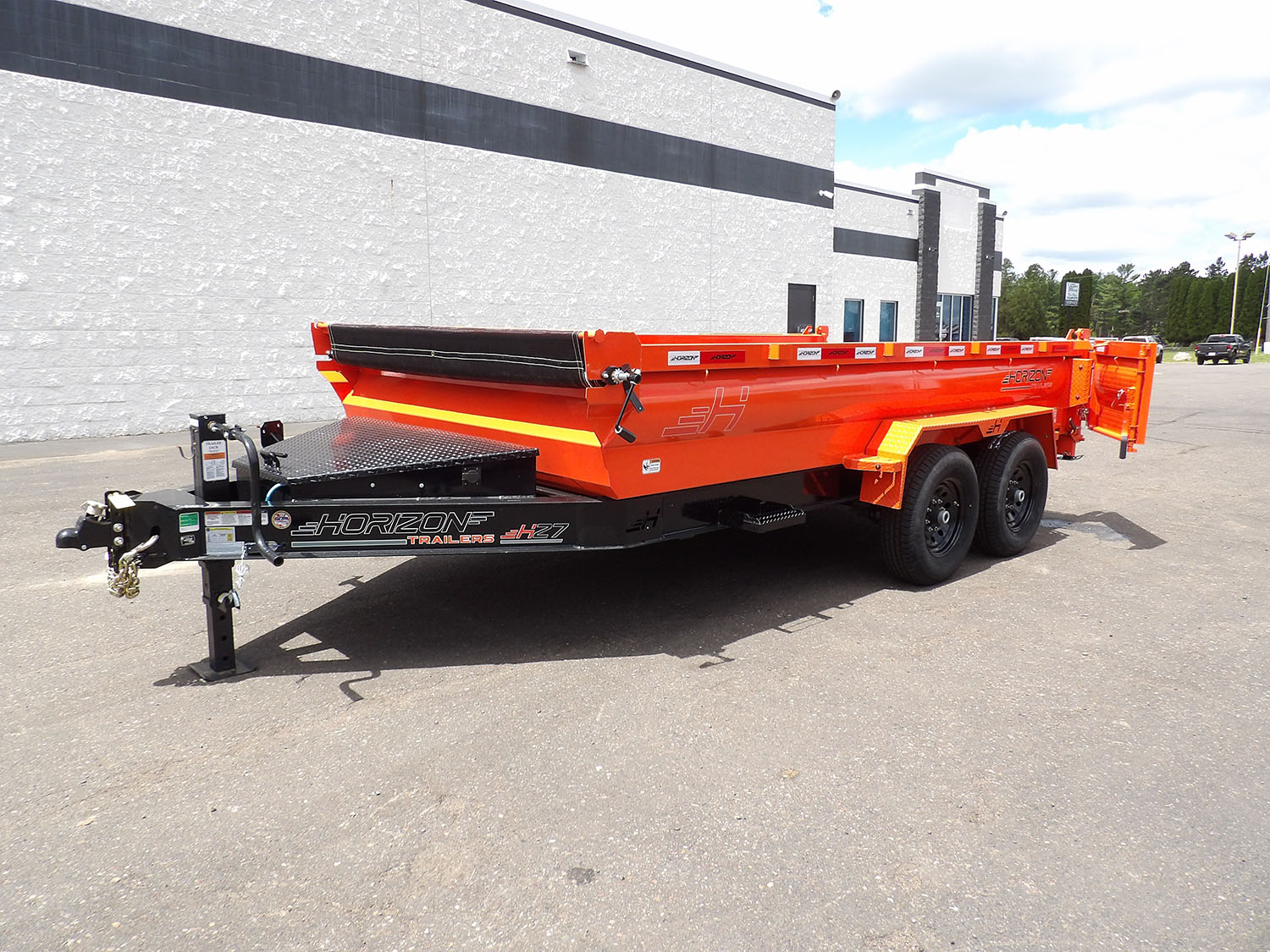

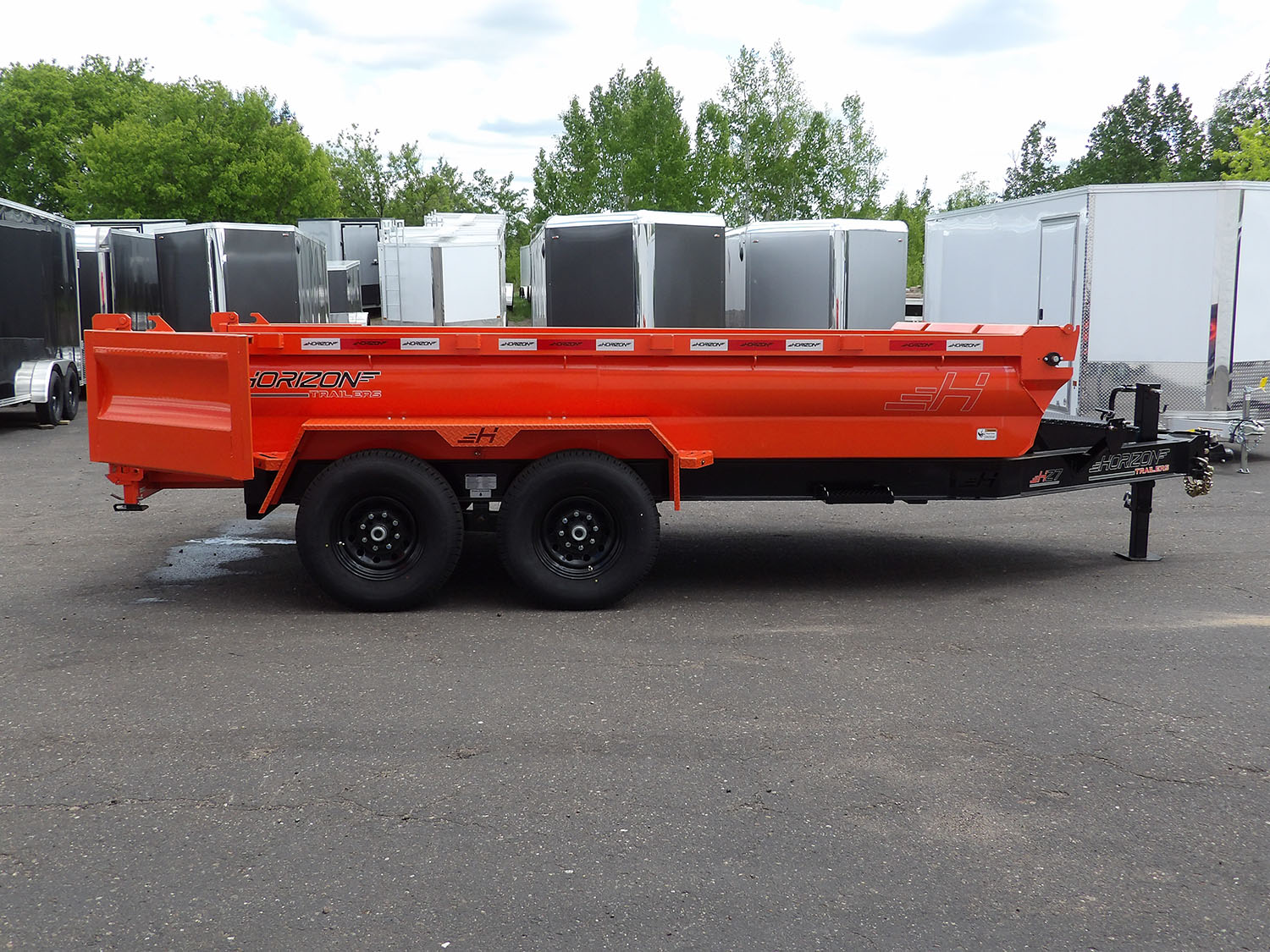

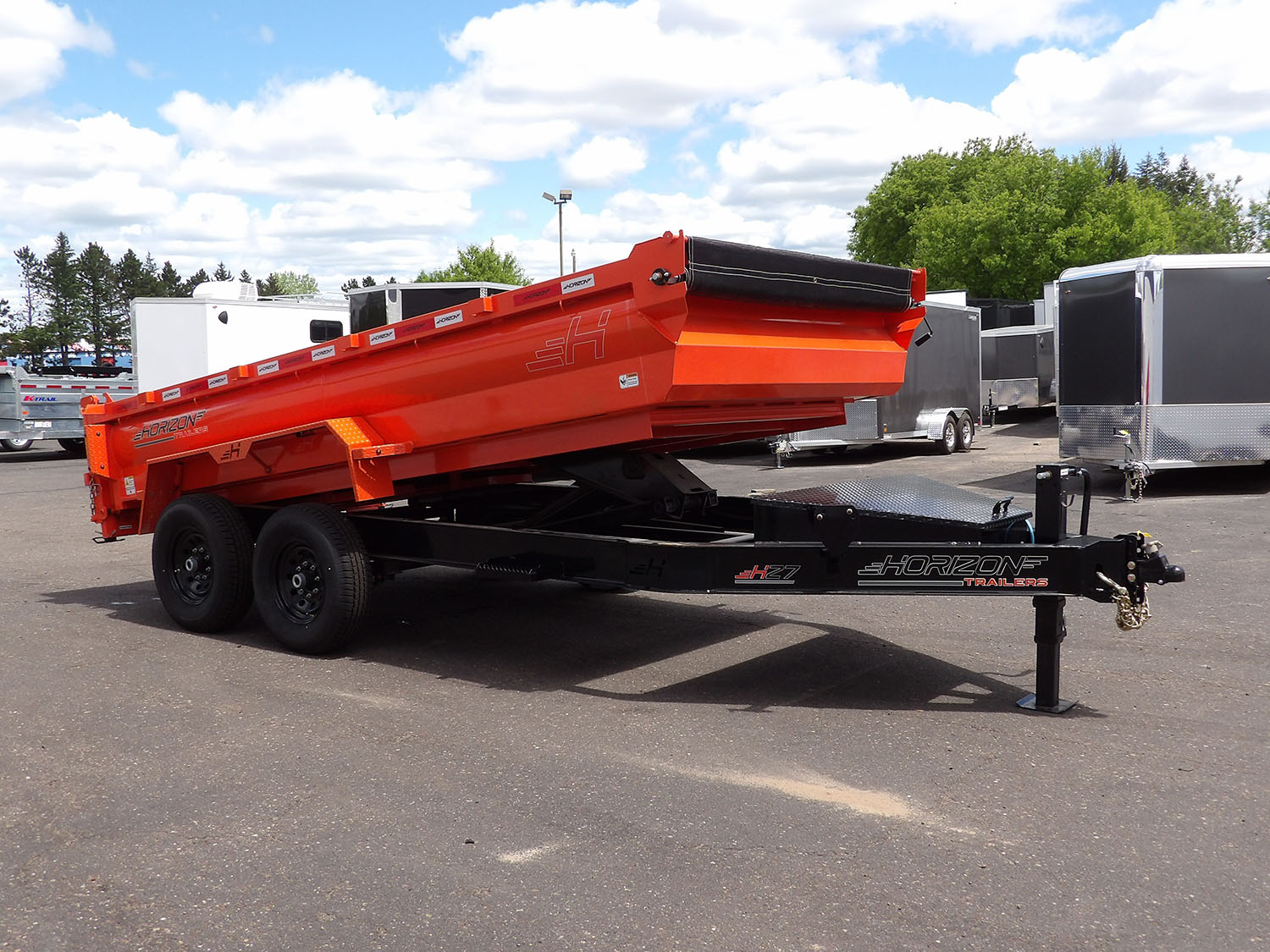

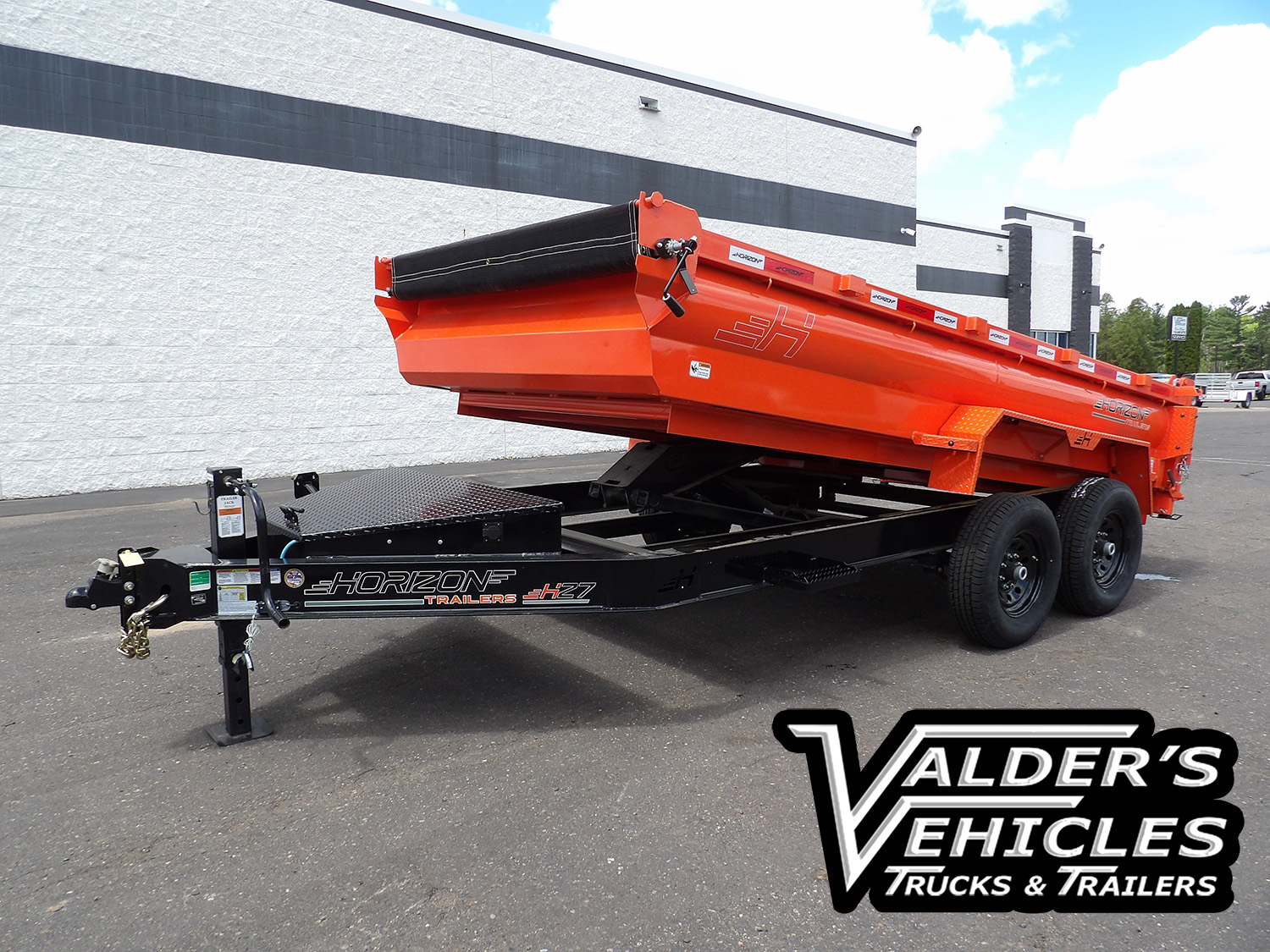

2025  Horizon  83X14 HZ7 DUMP TRAILER 14K  HZ7 - HZ005941

2025 Horizon 83x14 LZ7 DUMP TRAILER 14K

Specifications:
- 8" I-BEAM [13 LBS/FT]
- MEGA LOCKABLE TOOLBOX (HOUSES BATTERY AND PUMP]
- ROBUST TOOLBOX LATCH
- 4 D-RINGS WELDED INSIDE BOX
- RAMP POCKETS W/ 6' 4" LONG SLIDE IN 3" CHANNEL RAMPS
- WELD ON SPARE TIRE MOUNT
- EXTRA MARKER LIGHTS FOR ADDED VISIBILITY
- MANUAL TARP KIT

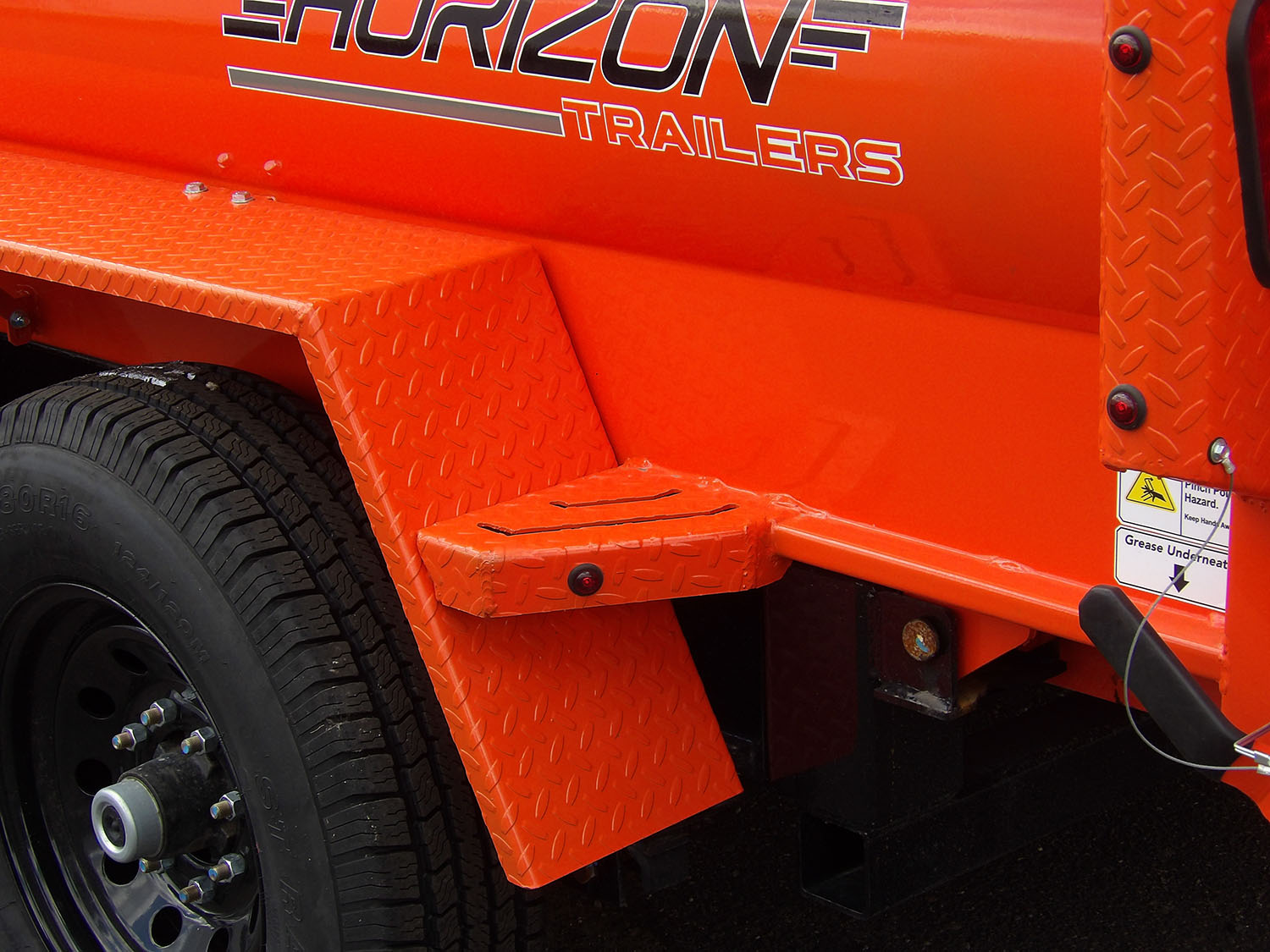

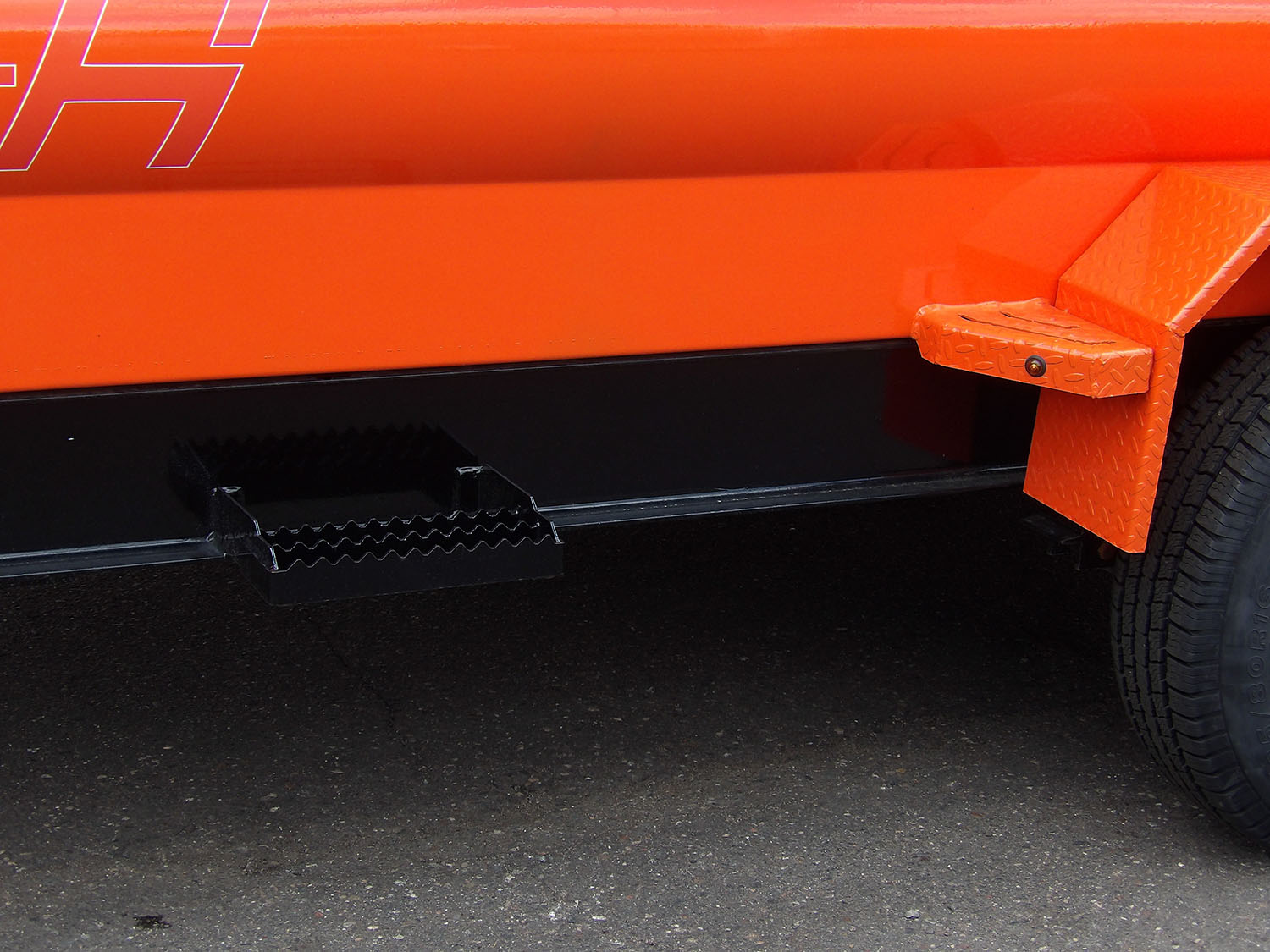

- Side Steps on Both Sides

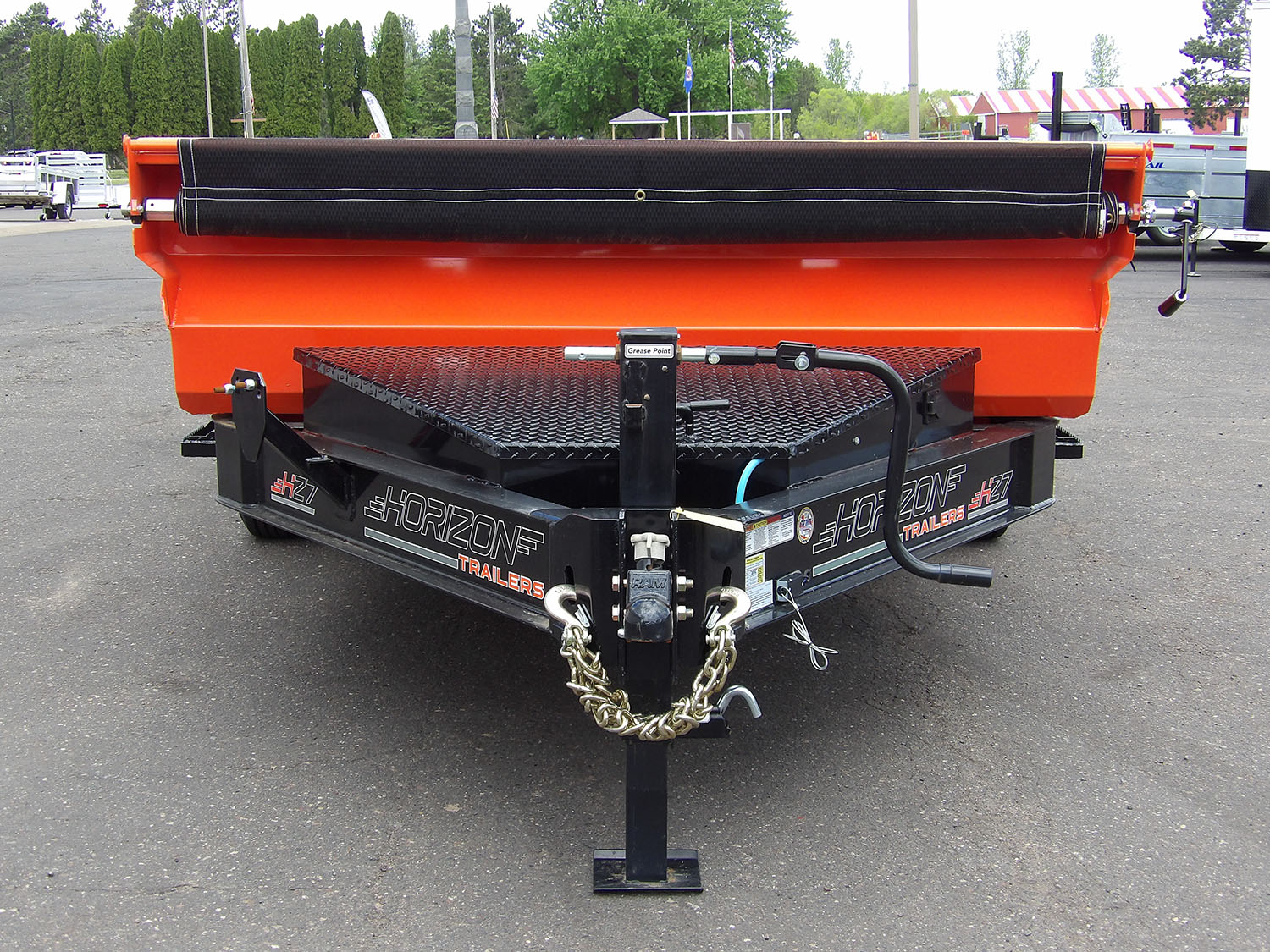

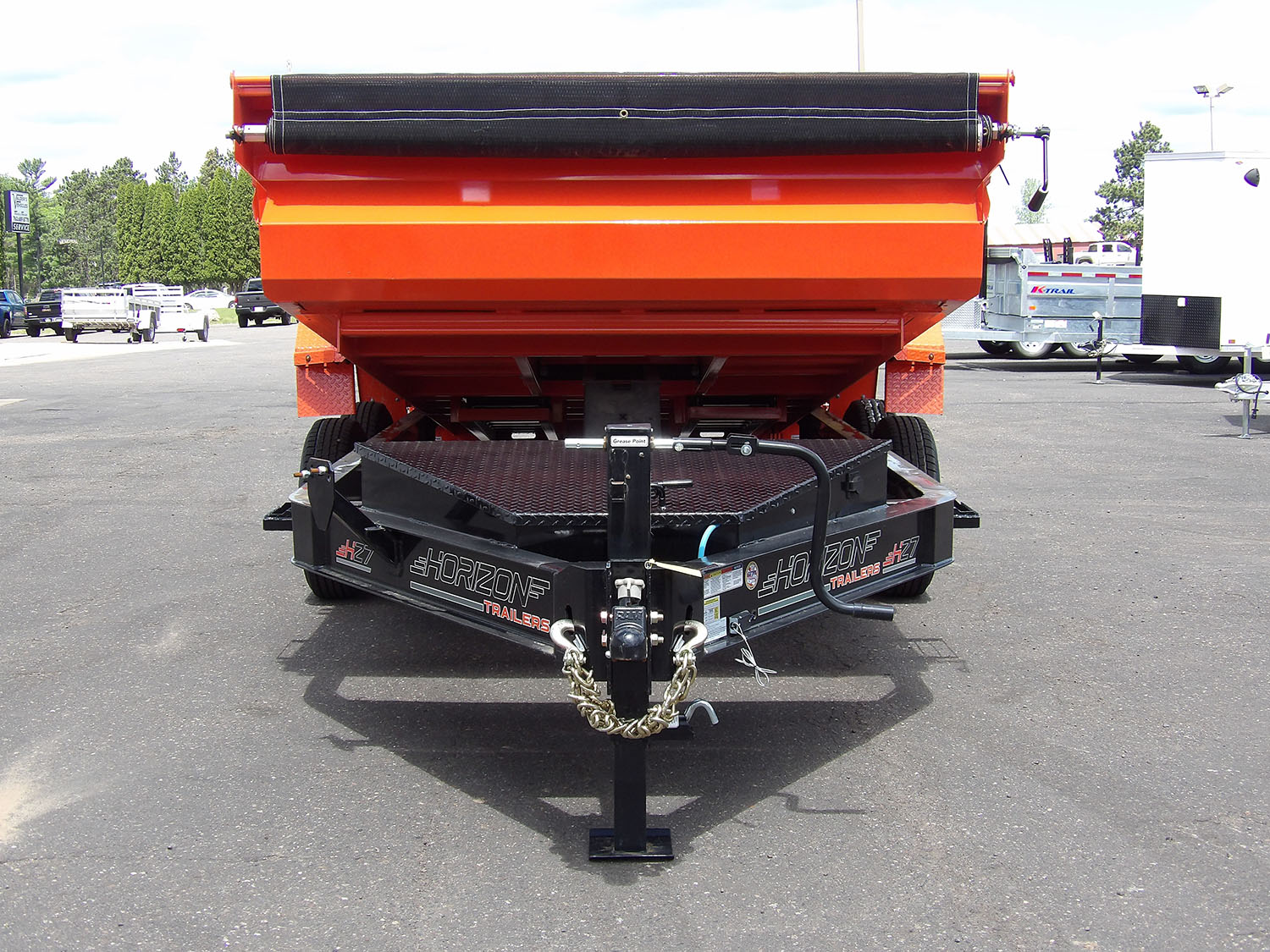

- TONGUE TYPE: NECKBOSS 8" ENGINEERED I-BEAM
- LENGTH 60"
- WELD ON SPARE TIRE MOUNT

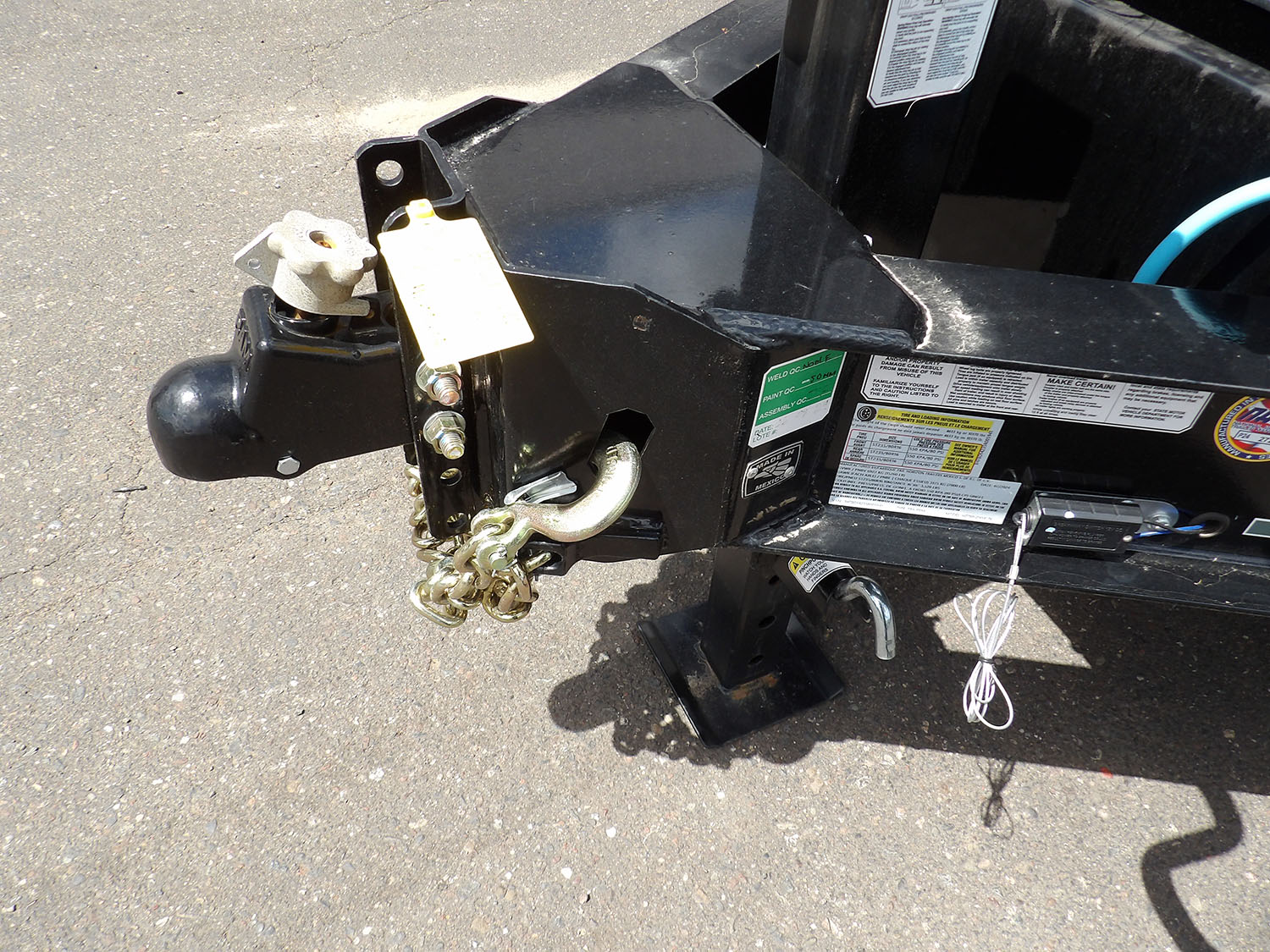

- COUPLER: 2 5/16" ADJUSTABLE AUTO LATCH
- JACK: 1 SIDE WIND SPRING LOADED DROP JACK LEG (12,000 LBS]

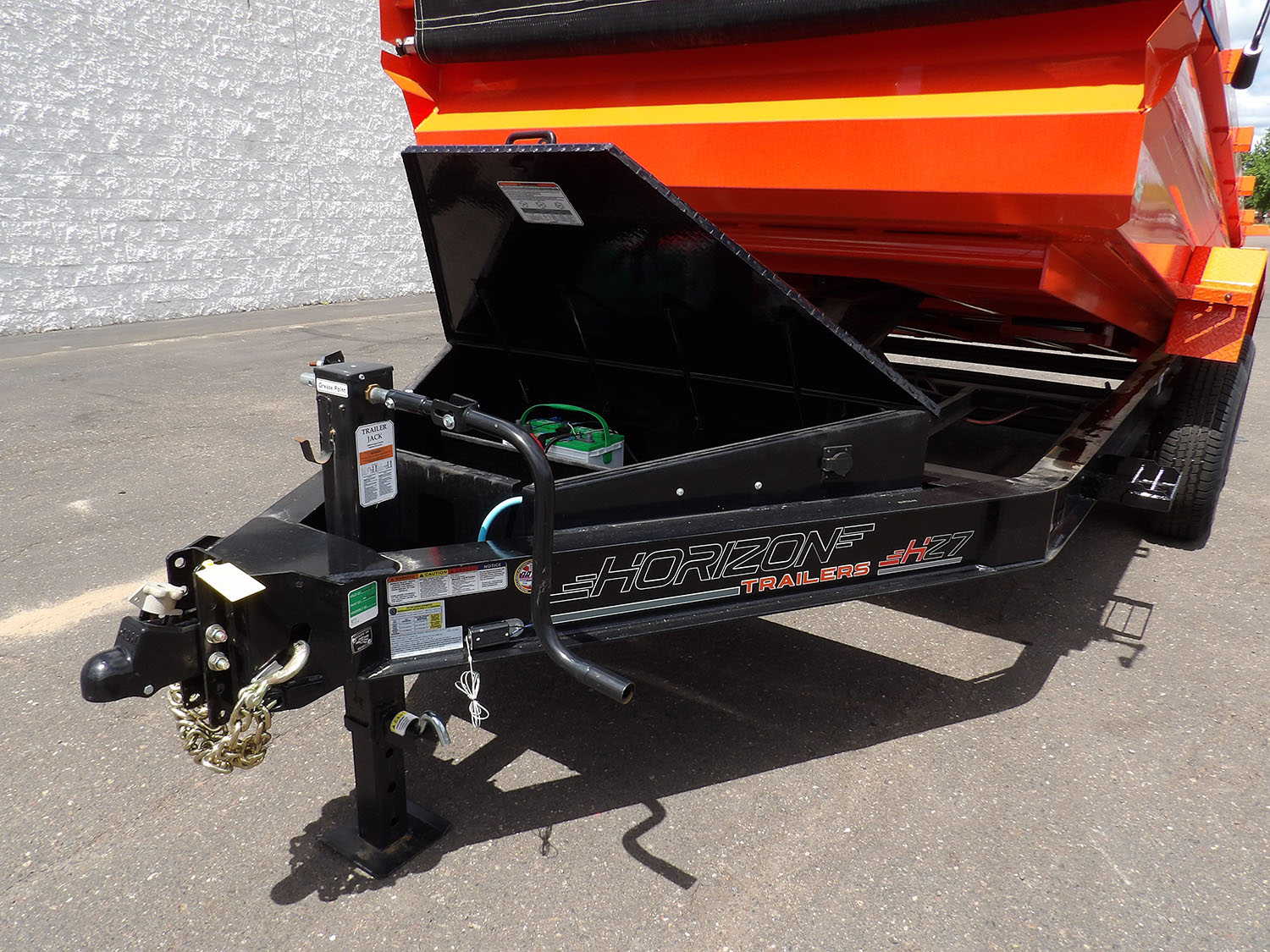

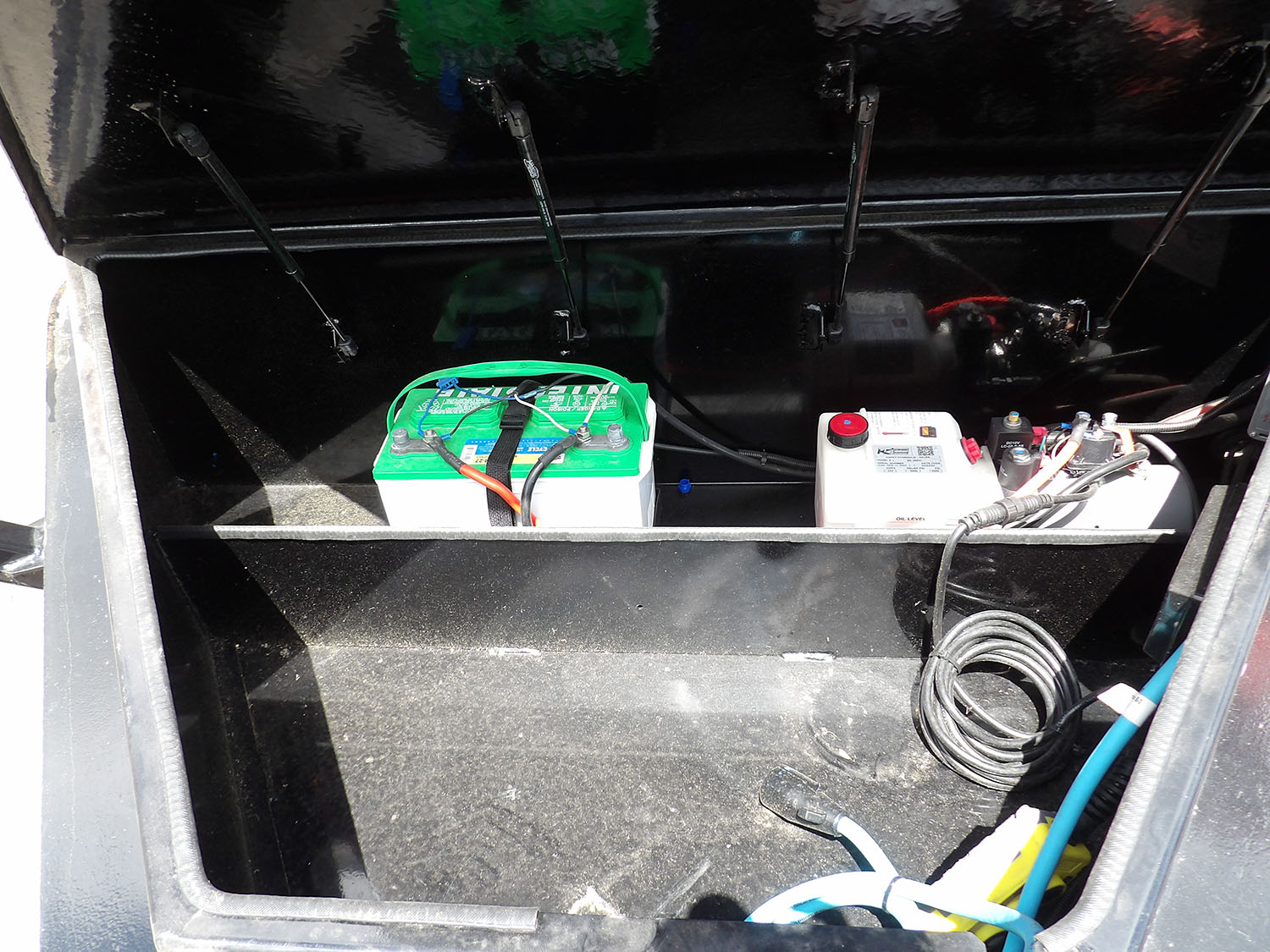

- TOOLBOX: MEGA LOCKABLE TOOLBOX HOUSES BATTERY & PUMP (W/ EXTRA STORAGE]
- SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH]
- BED WIDTH: 83"
- BED HEIGHT: 28"
- FLOORING: 7GA. STEEL BED
- FRAME: 3" X 5" X 1/4" ANGLE IRON
- CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT] 16" SPACING

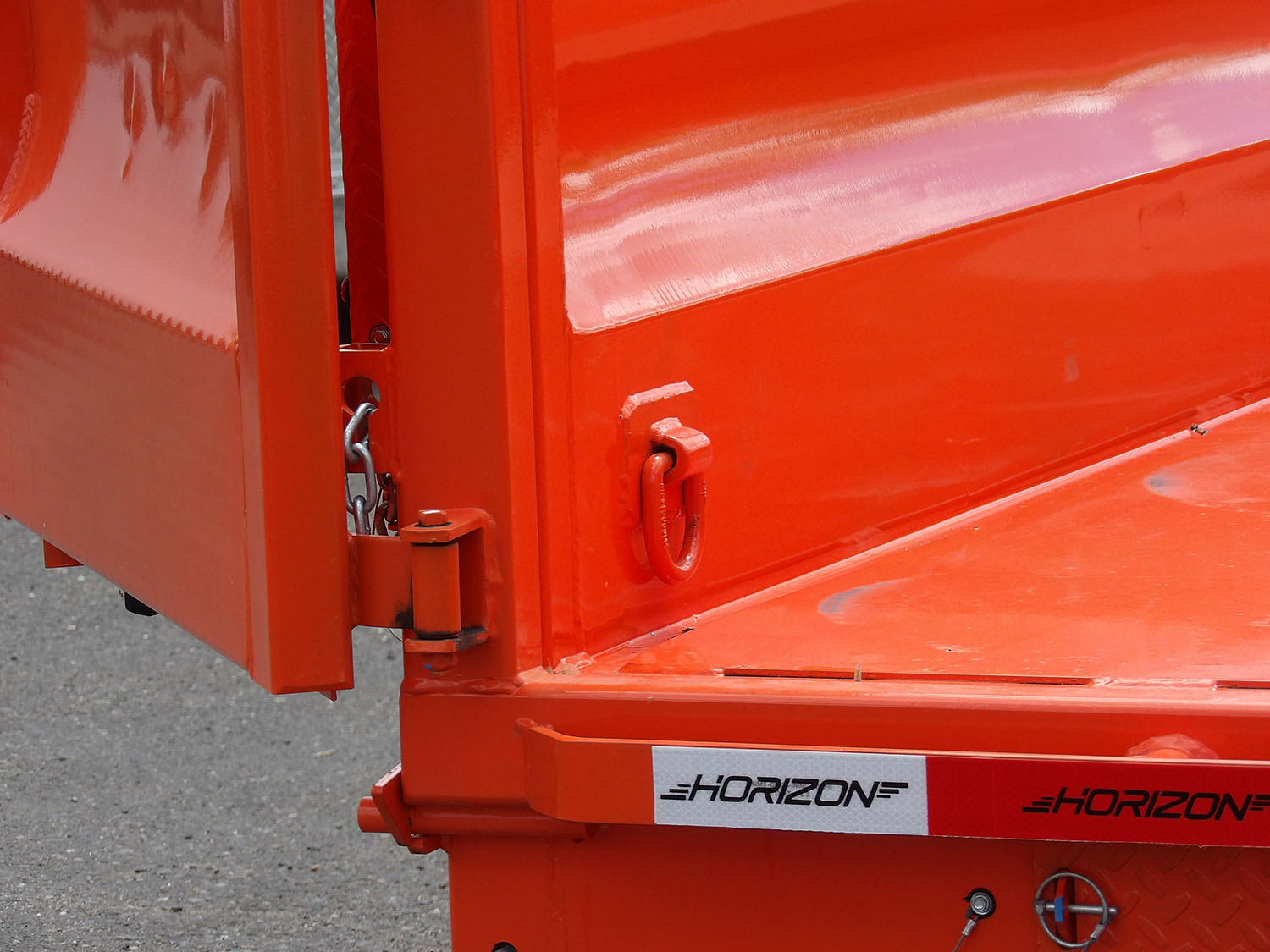

- D-RINGS: 4 D-RINGS WELDED INSIDE BOX

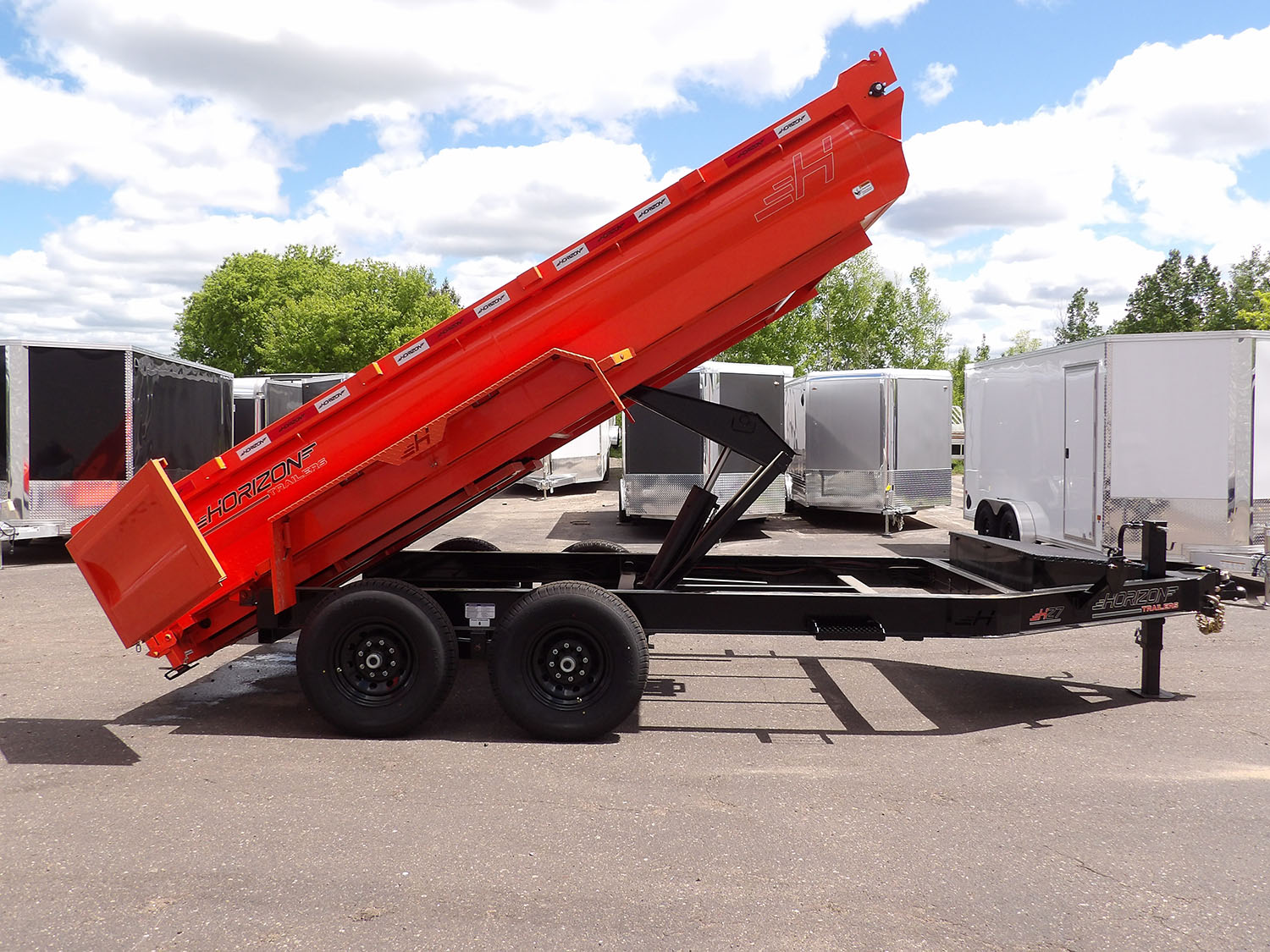

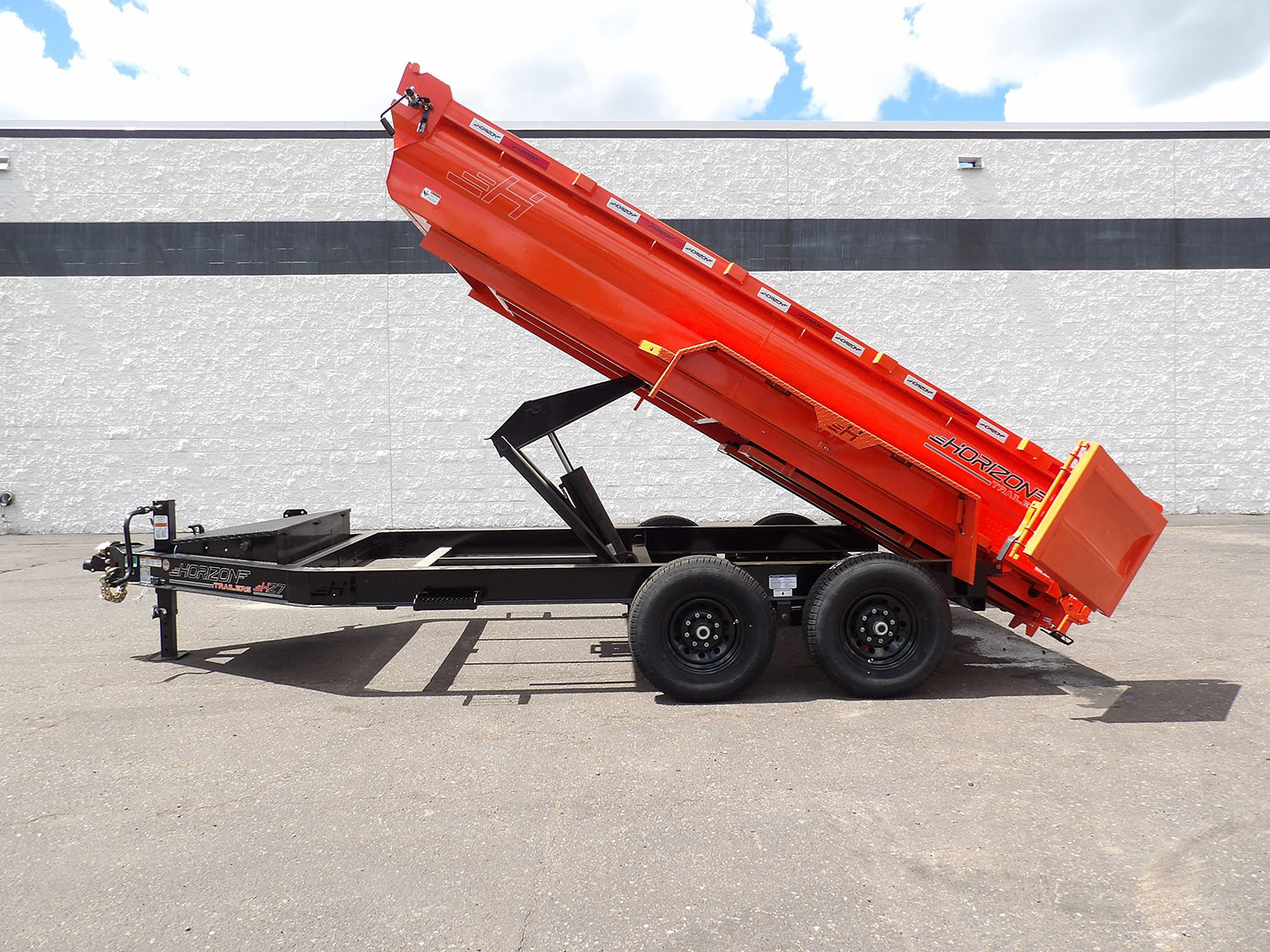

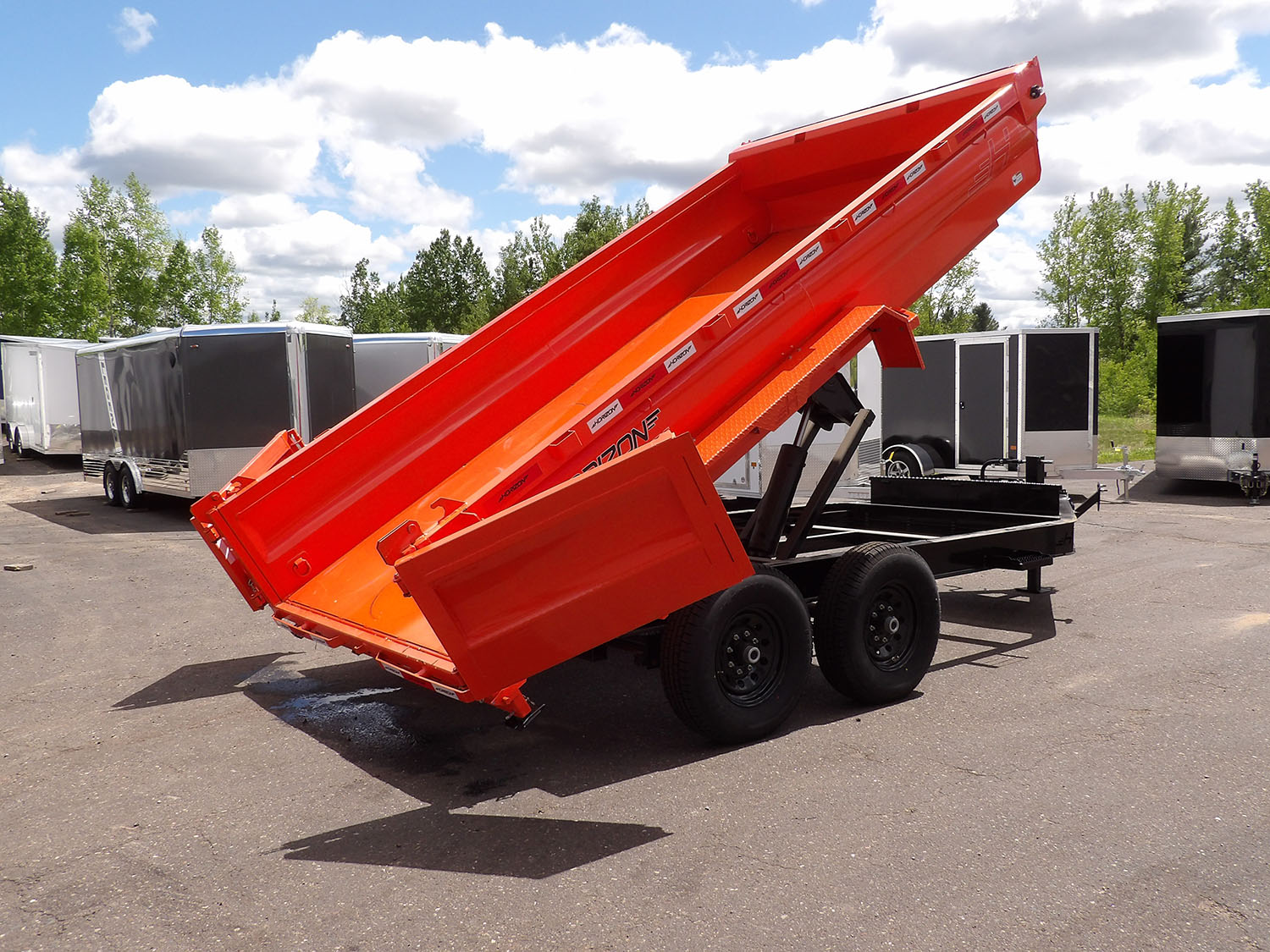

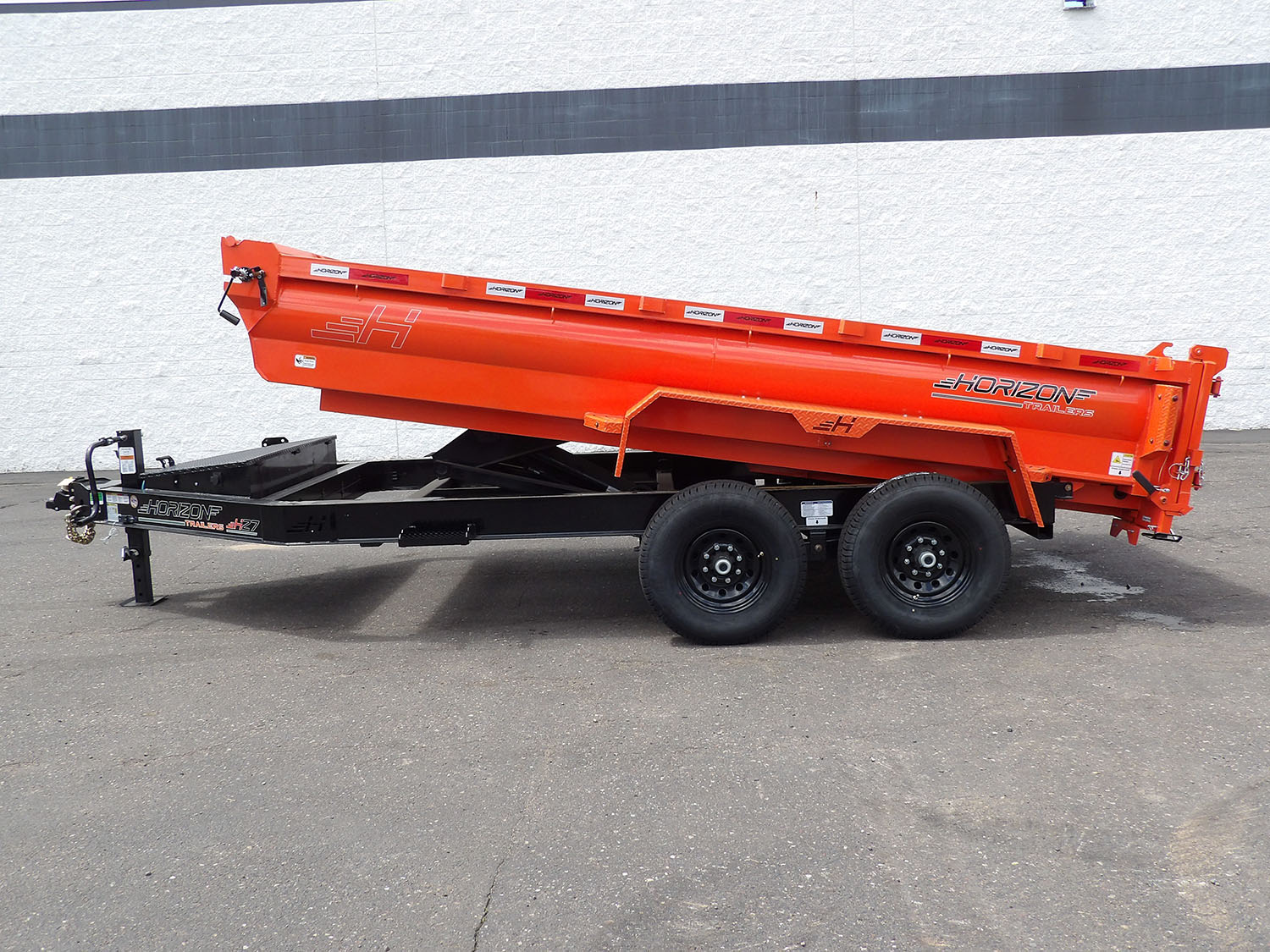

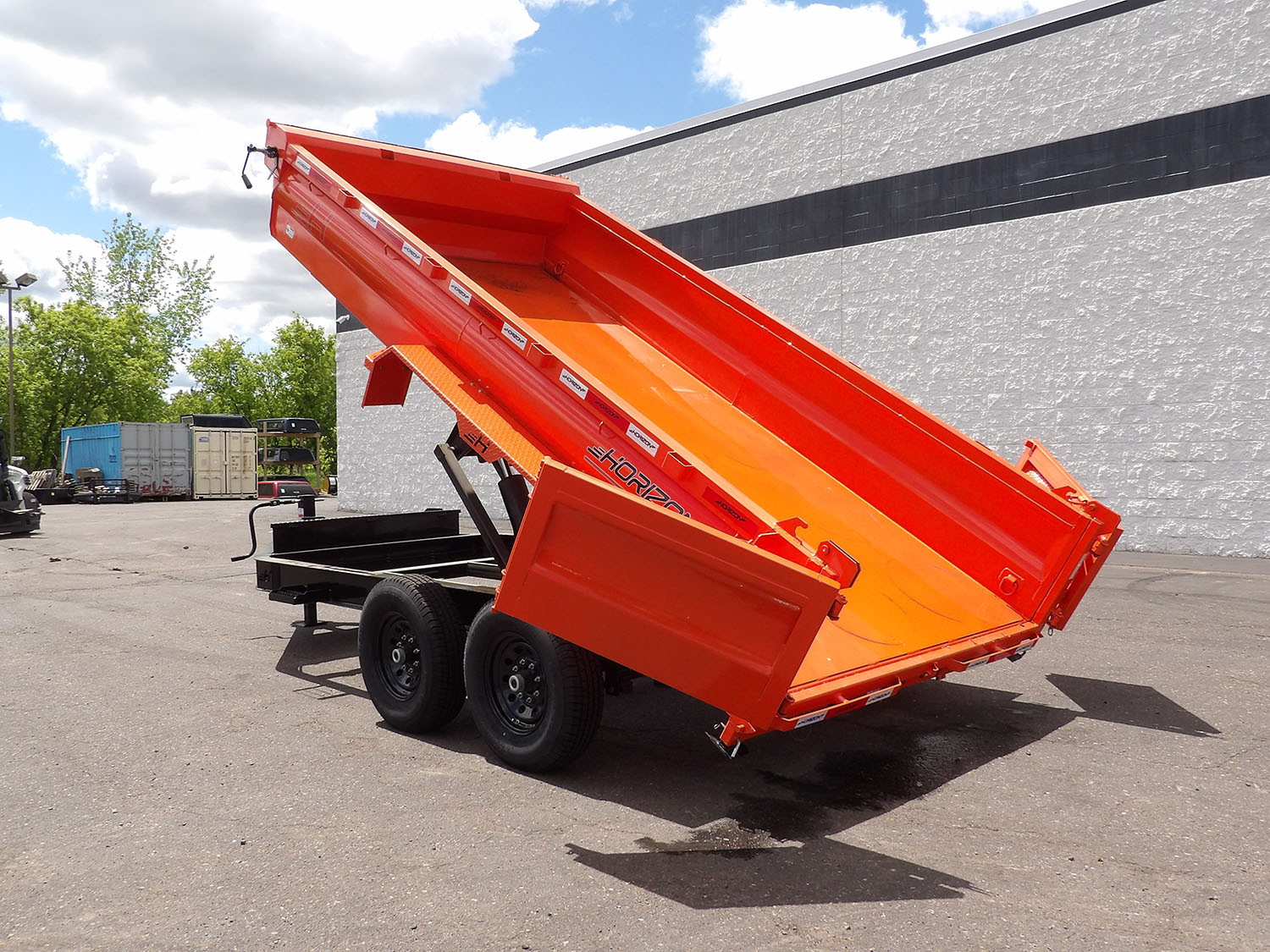

- DUMP ANGLE: 39°-49°

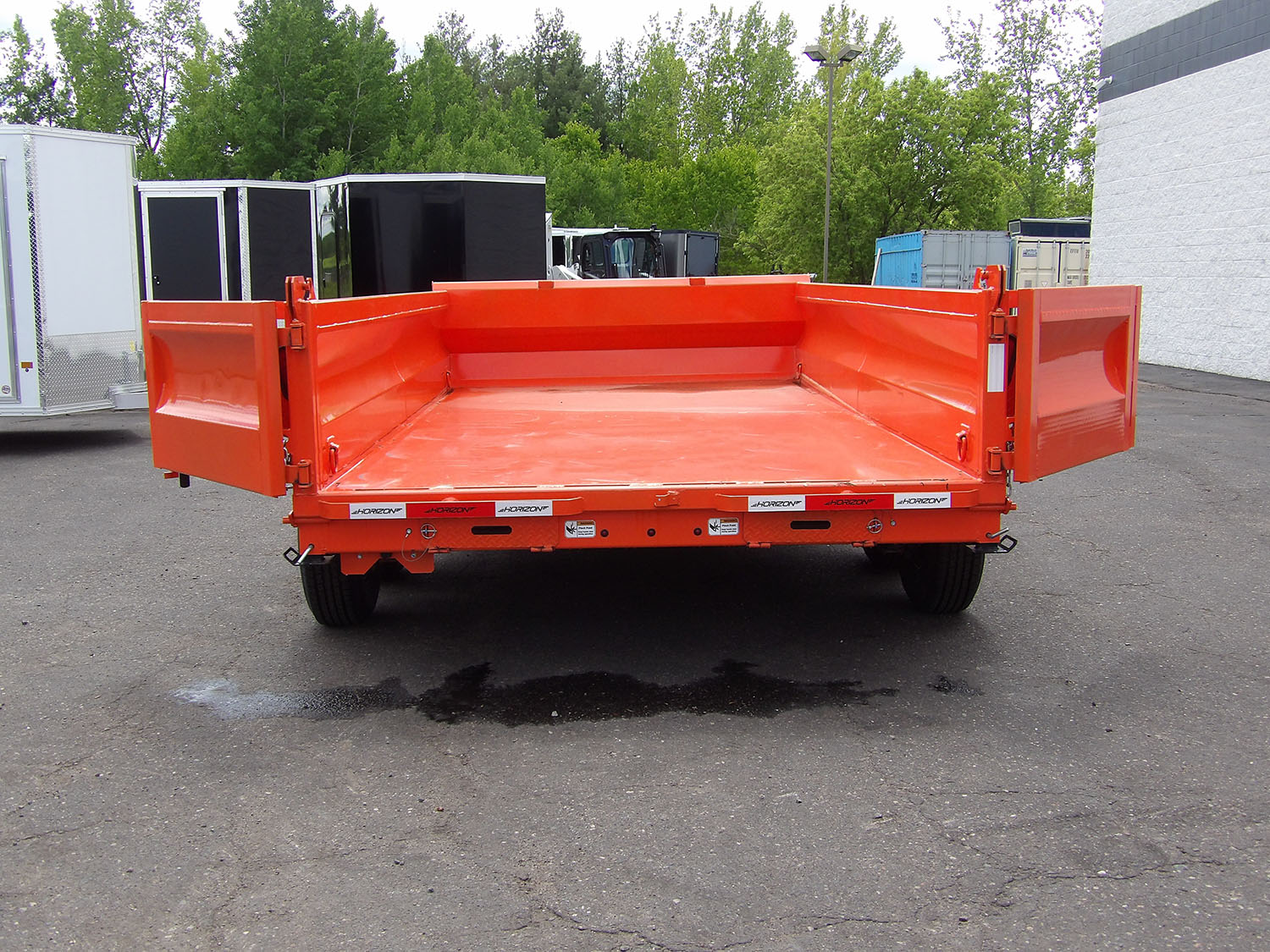

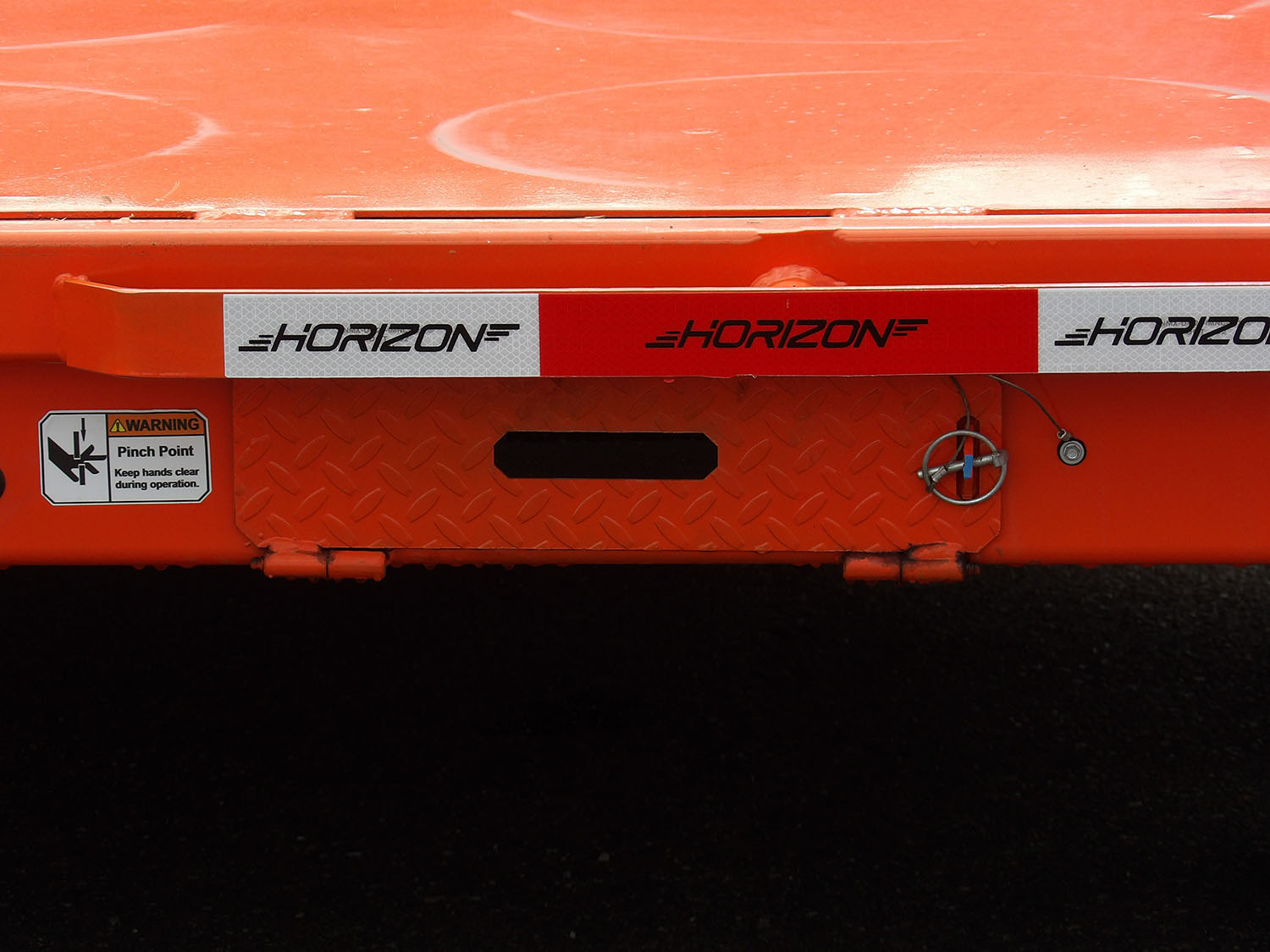

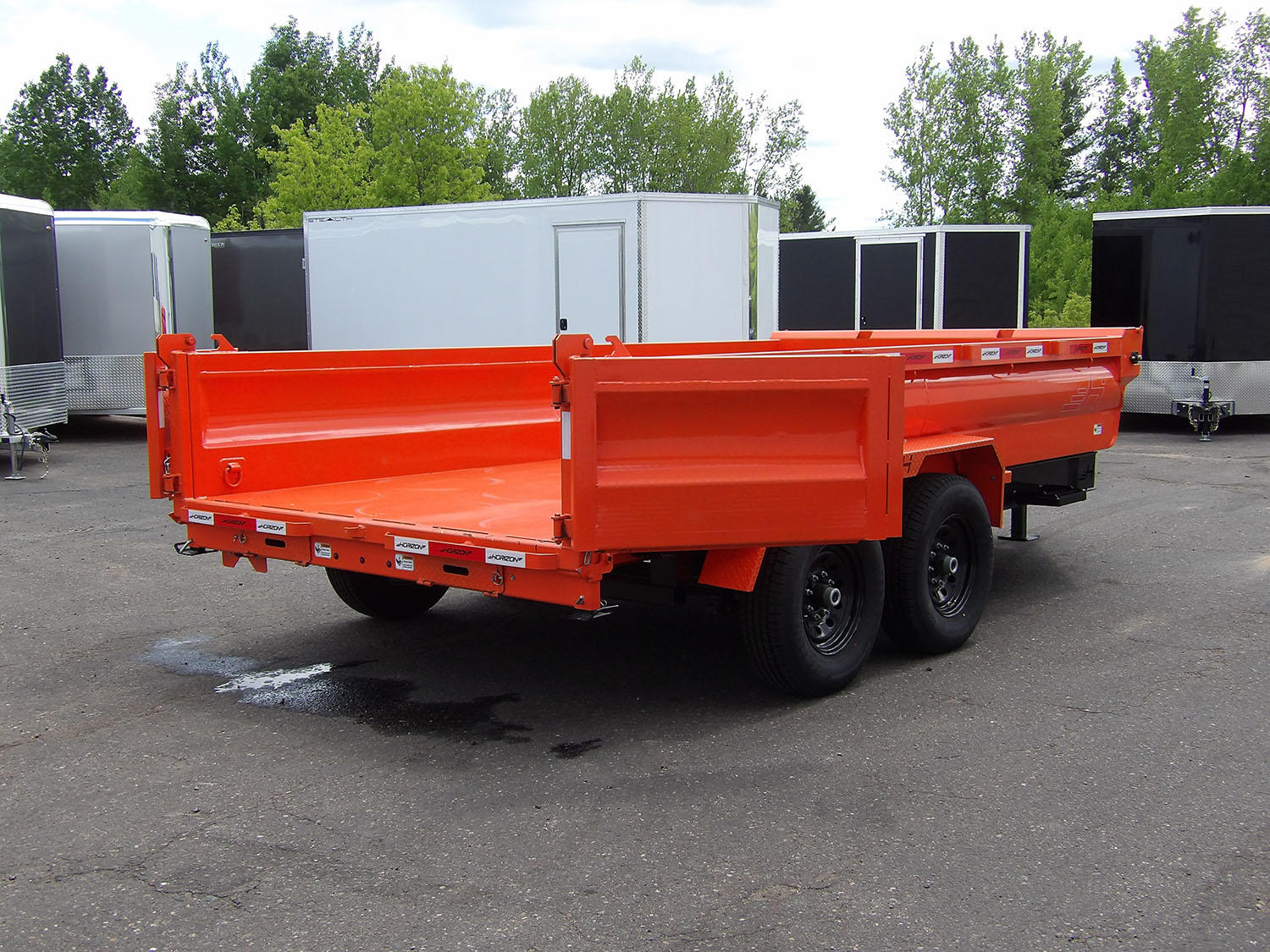

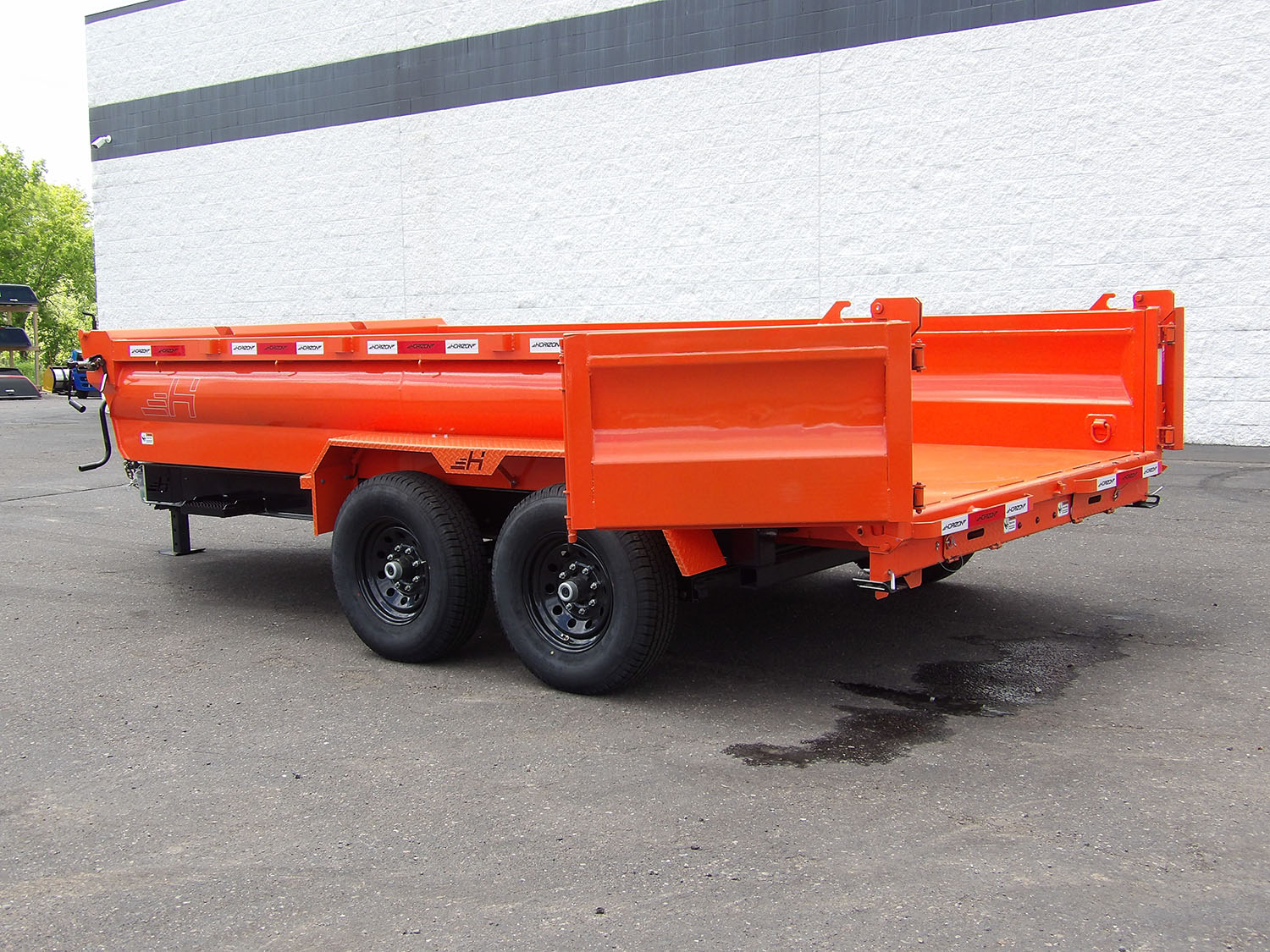

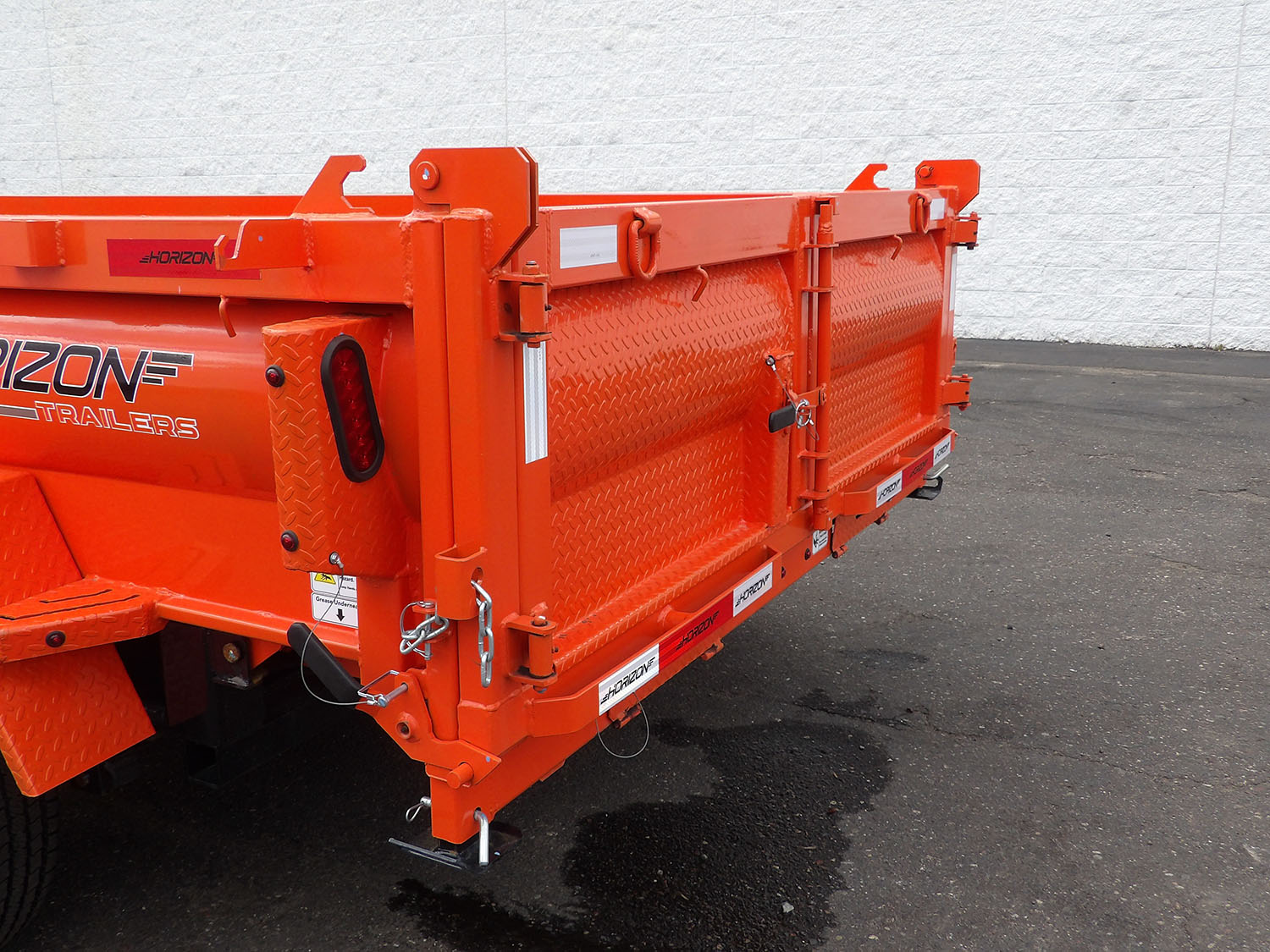

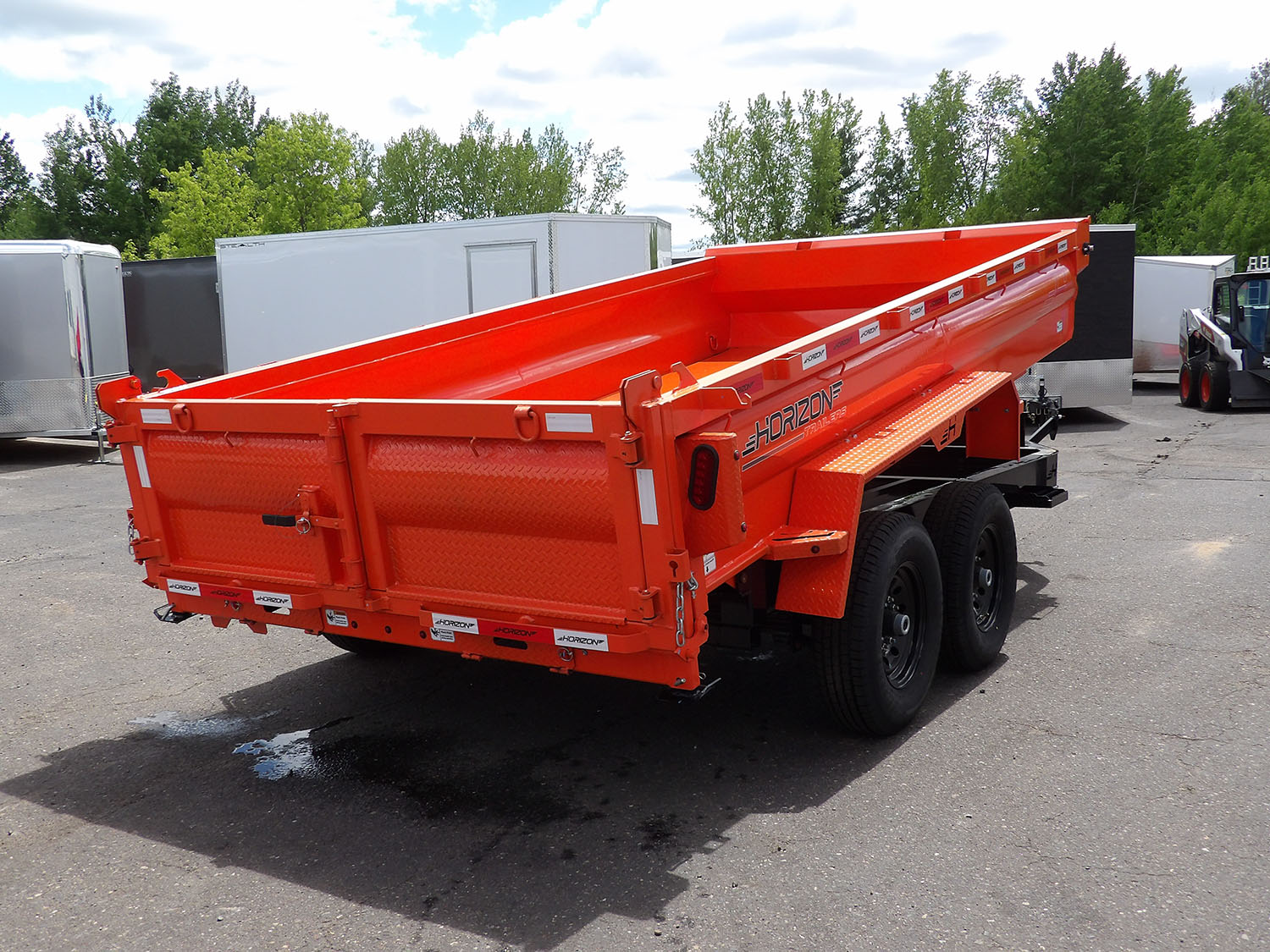

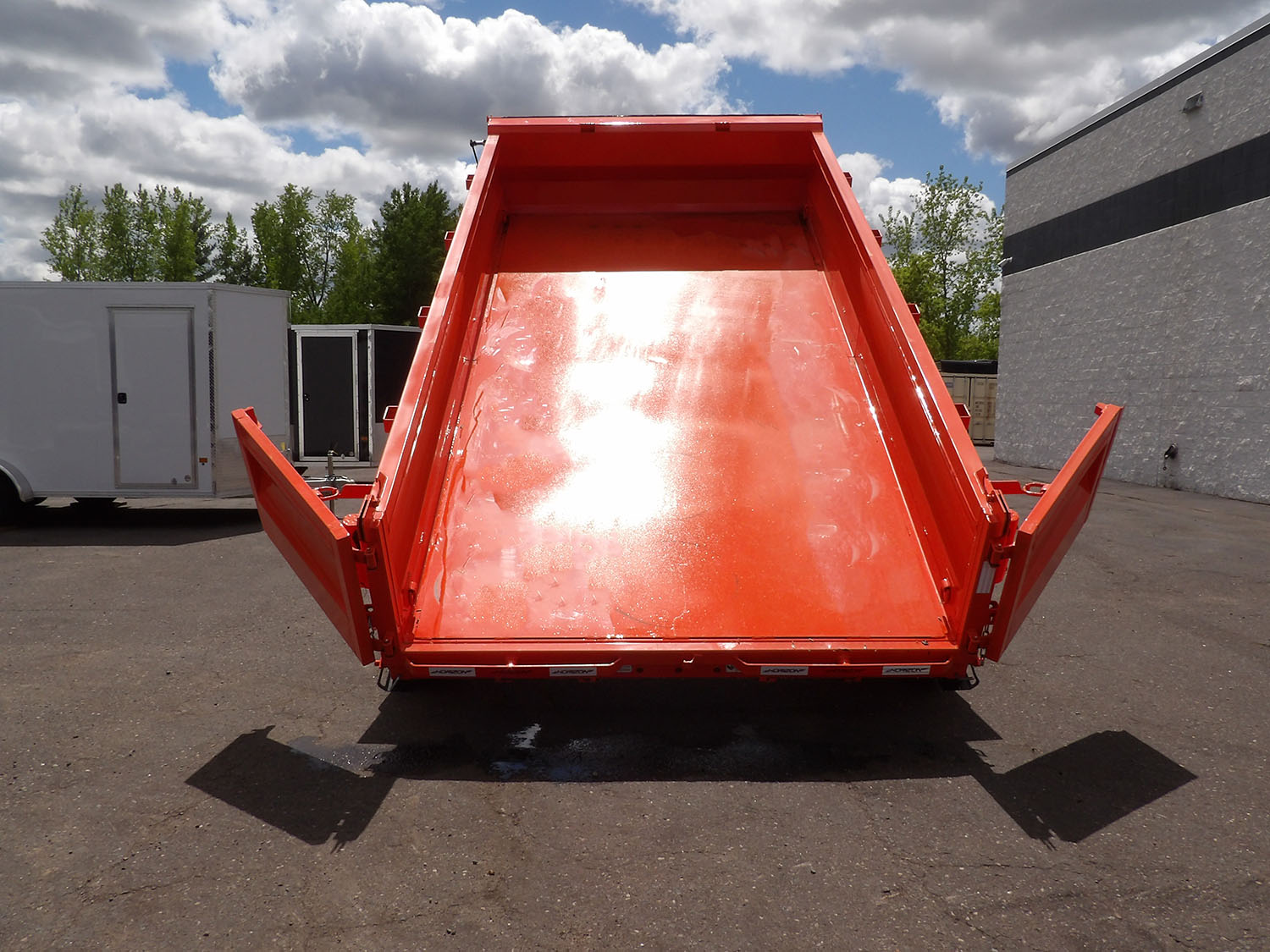

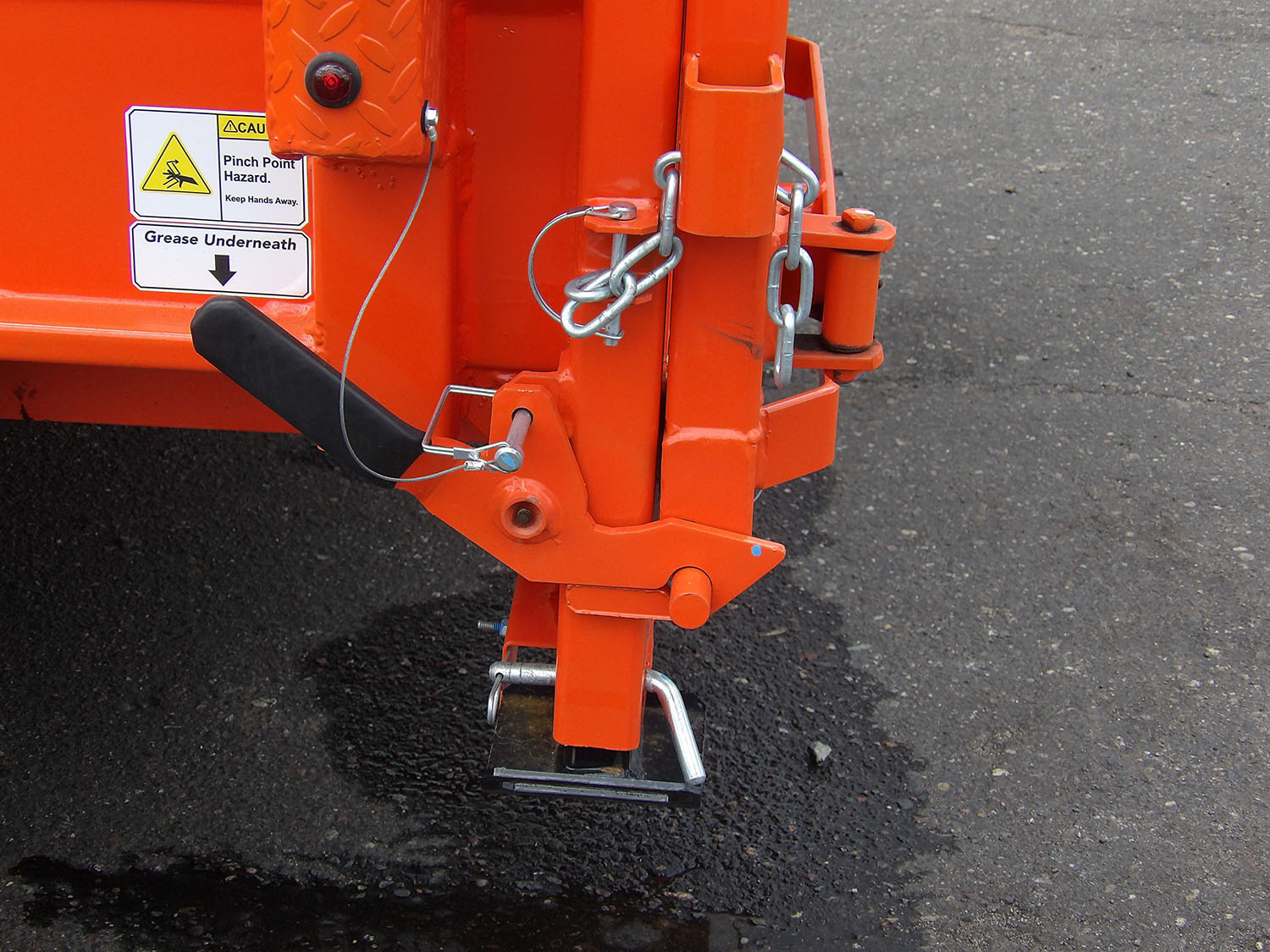

- REAR GATE: 3 WAY DOOR - SPREADER GATE
- RAMPS: RAMP POCKETS W/ 6' 4" LONG SLIDE IN 3" CHANNEL RAMPS (4,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE]
- SIDE HEIGHT: 24"
- TOP RAIL WIDTH: 83"
- THICKNESS: 10GA.
- TYPE: ROUNDED STEEL
- TOP RAIL: 3" X 5" X 11GA. TUBING

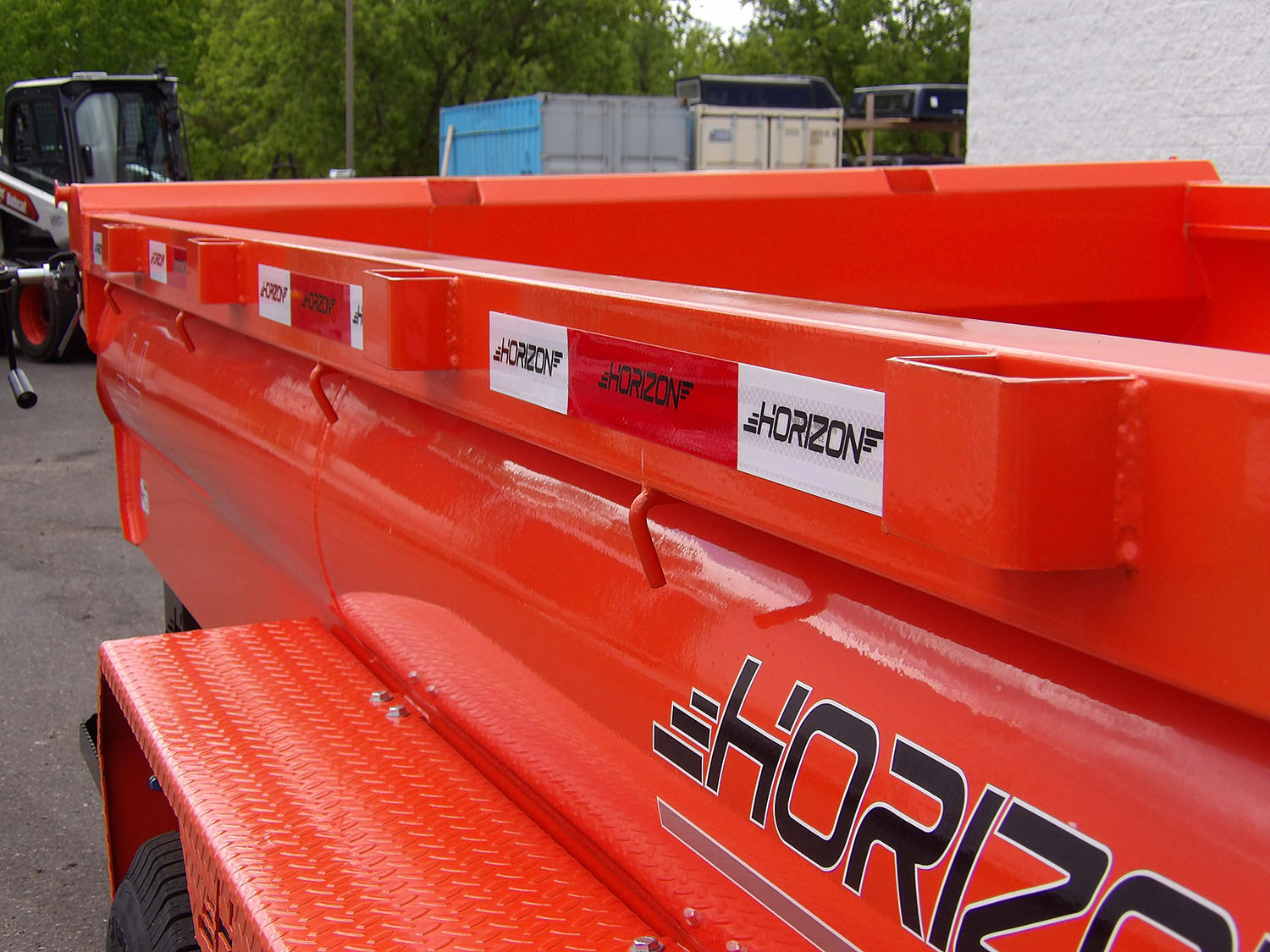

- STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
- HOOKS: 3/8" ROUND "J" HOOKS

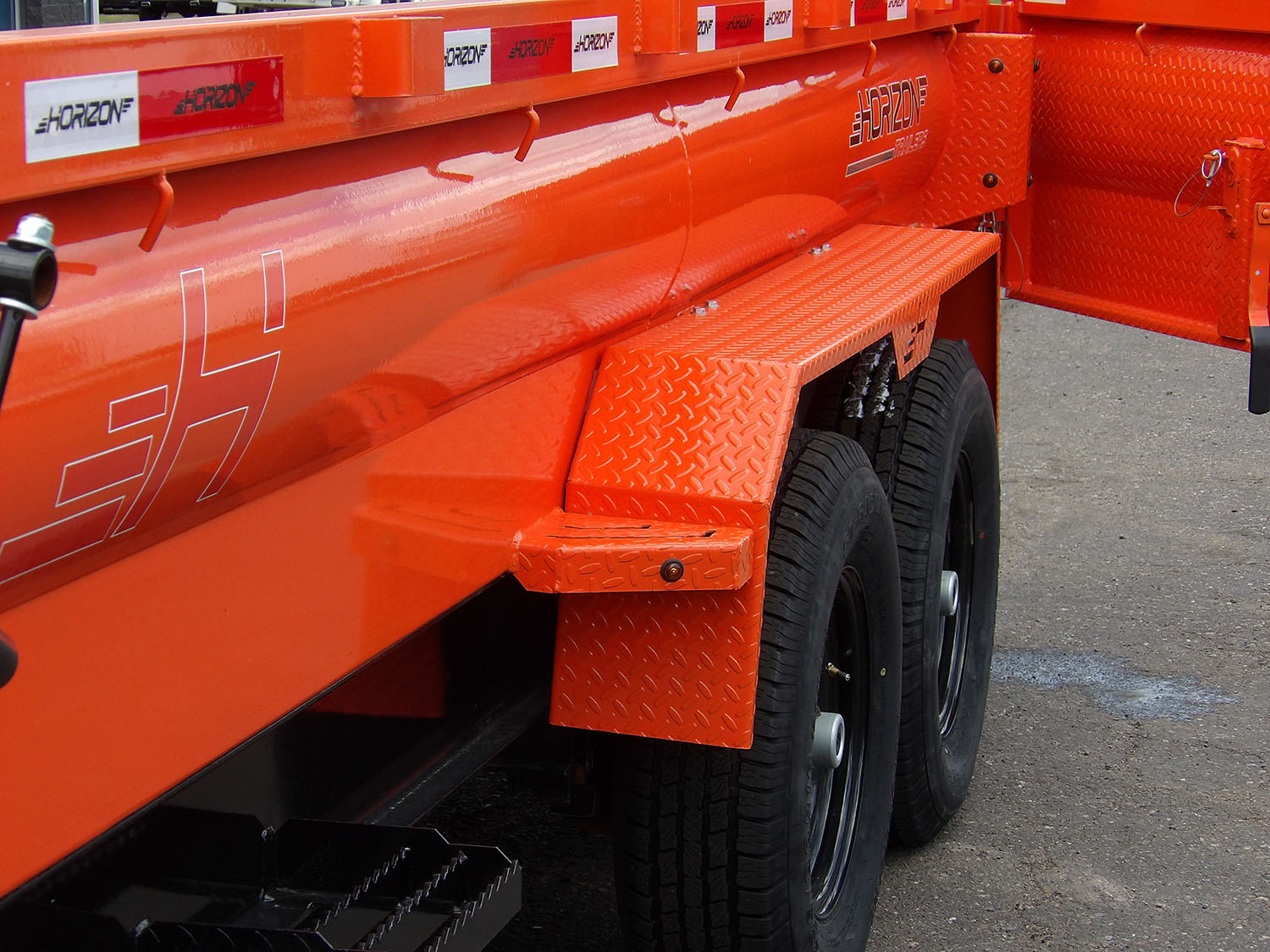

- FENDERS: 12GA DIAMOND PLATE STEEL FENDERS

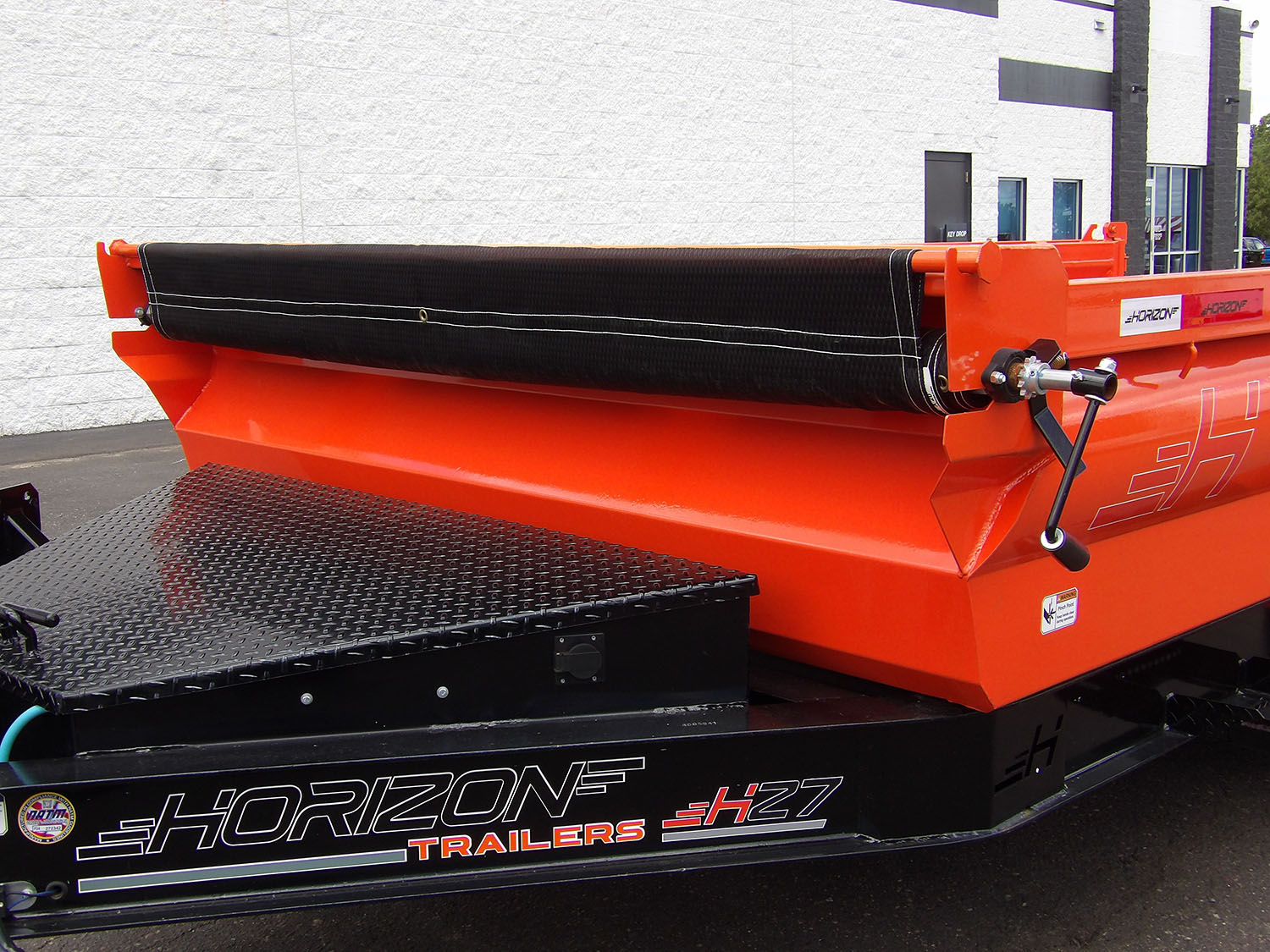

- MANUAL TARP KIT
- HYDRAULICS SYSTEM: 2 BUTTON HYDRAULIC - POWER UP / POWER DOWN
- PUMP: KTI 12V HYDRAULIC PUMP
- 14' DUMP LIFT CYLINDER
- 14' CONTROL CABLE

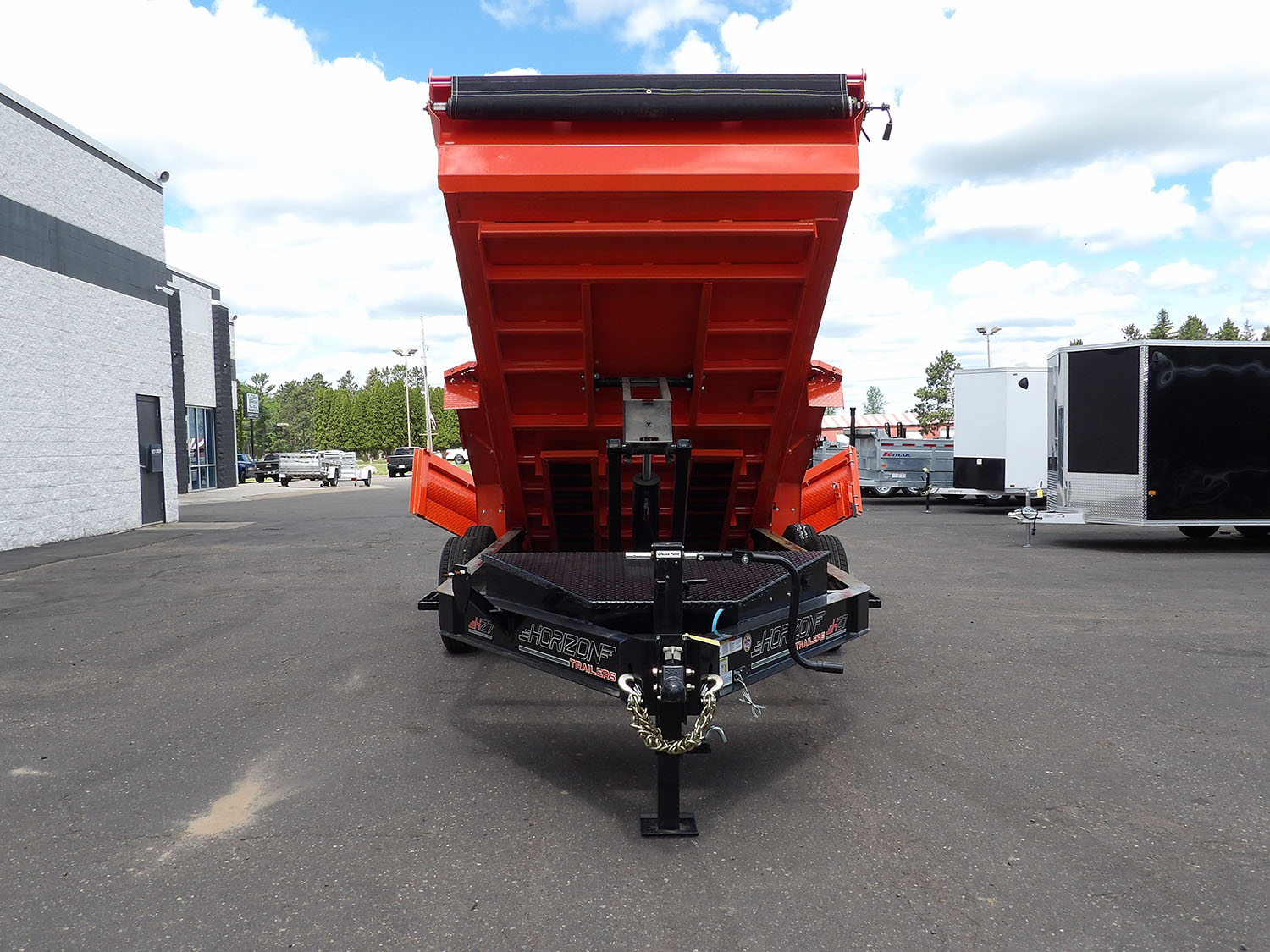

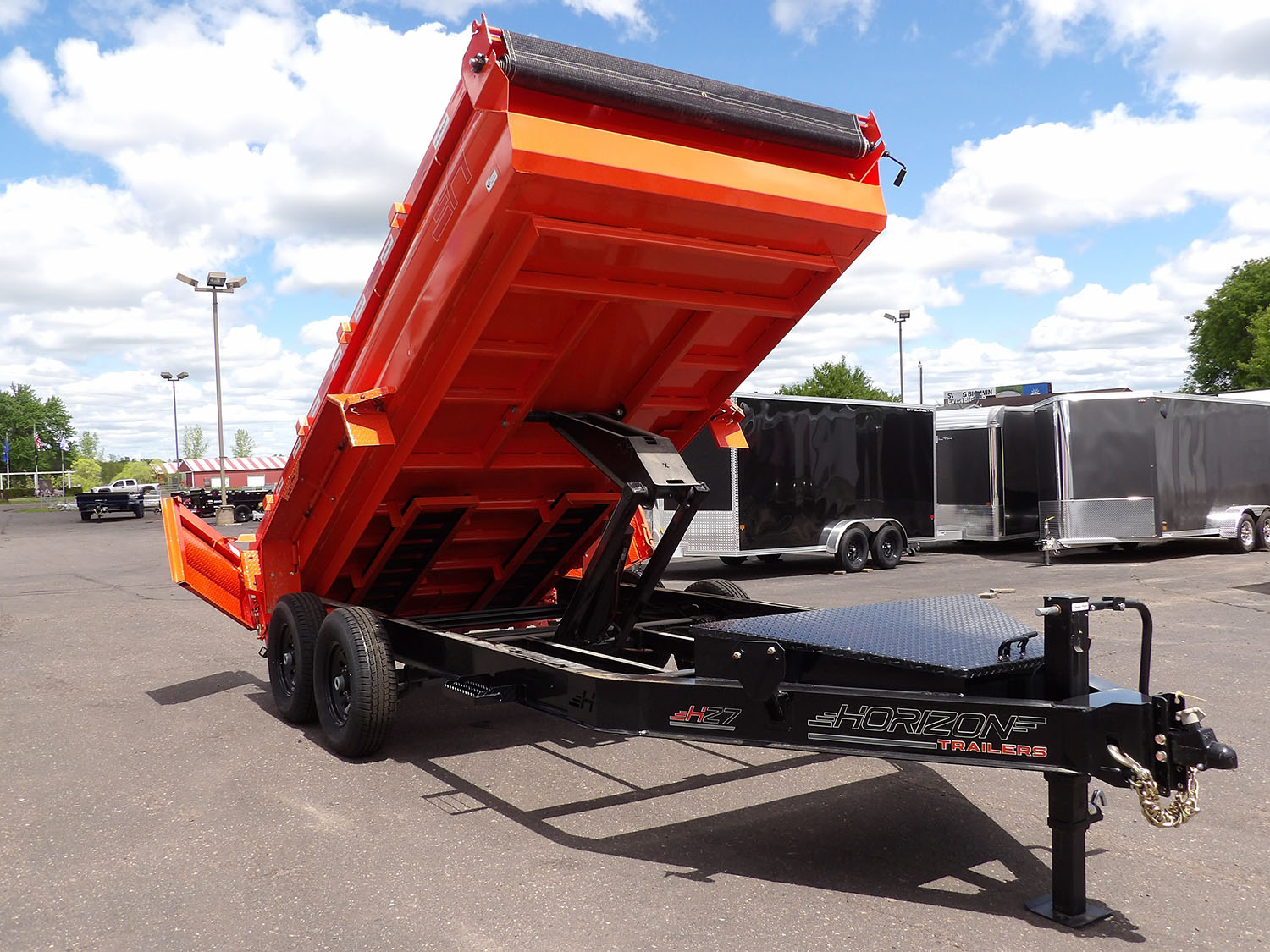

- HOIST W/ 6" X 21" SINGLE PUSH CYLINDER (20,000 LBS]

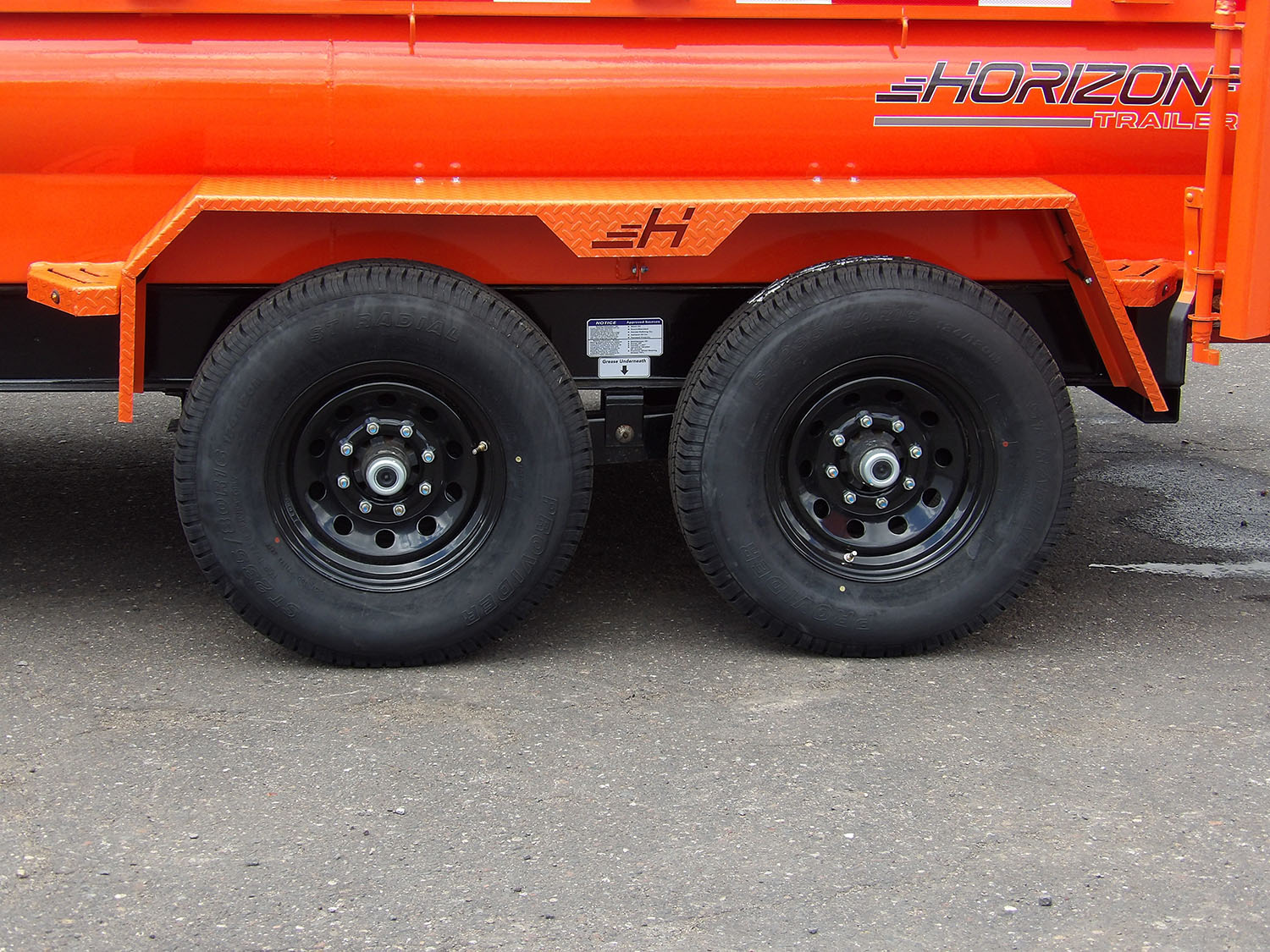

- TIRES: ST235/80R16E 10 Ply
- RIMS: 16" BLACK MOD WHEELS 8 ON 6.5"
- AXLE TYPE: (2) 7K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES
- BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
- CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER
- WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV]
- FRAME WIRING: DOUBLE INSULATED WIRING HARNESS

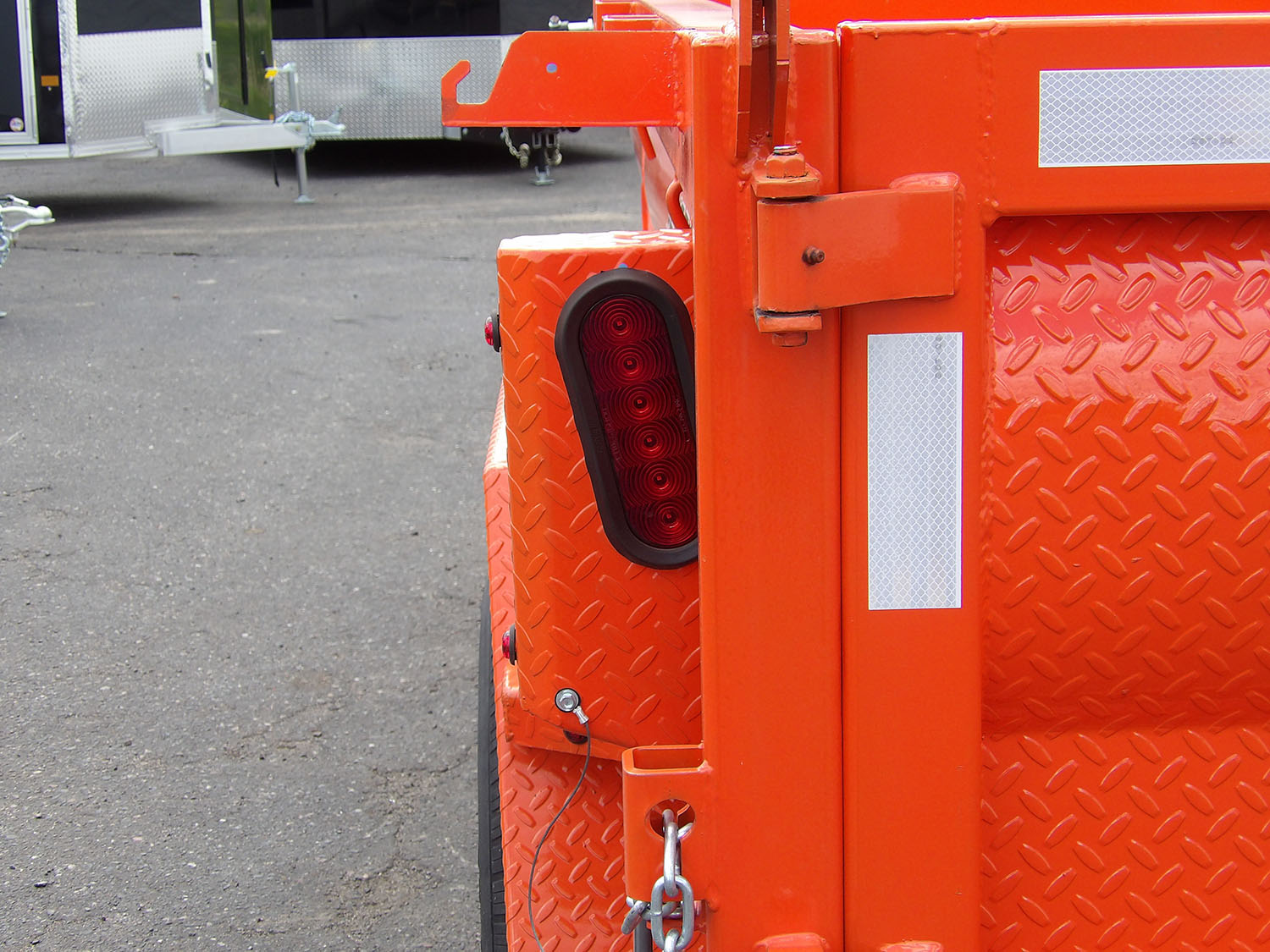

- LIGHTING: DOT APPROVED TECNIQ LED LIGHTS
- GVWR: 15260 lbs
- Curb Weight: 5090 lbs
- Load Capacity: 10170 lbs

Warranty:
3-Year STRUCTURAL WARRANTY
1-Year COMPONENT WARRANTY
1-Year PAINT WARRANTY
